Finder Relay — DPDT 12V DC Coil, 12A 250V AC Contacts

Reliable 12V DC Coil Relay for Everyday Applications

The Finder 56.32.9.012.0070 is a DPDT 12V relay designed for safe, dependable switching in automation, hobby, and appliance control. With its compact design and simple plug-in relay socket mounting, this miniature power relay is easy to install and service, making it a practical choice for DIY electronics and professional use alike.

High Power Switching with DPDT Contacts

This Finder relay 12V features 2-pole changeover (DPDT/CO) contacts, rated for 12A at 250V AC. It can handle common household or workshop loads such as pumps, fans, or lighting. Its small footprint of 20.7 × 37.2 × 27.7 mm makes it ideal for tight enclosures while still delivering high current switching capability.

Everyday Benefits of the Finder 56.32 Relay

Easy installation: Plug-in mount on 96 Series sockets, or optional flange adaptor with Faston 187 connections.
Status at a glance: Available with lockable test button, mechanical indicator, and double LED (non-polarized DC).
Durable: Rated for up to 100,000 electrical cycles for long service life.
Safe and rugged: 4kV insulation between coil and contacts, and an ambient operating range of –40 °C to +70 °C.
Compact design: Fits neatly into panels, junction boxes, and project housings.

Key Technical Specs (Finder 56.32.9.012.0070)

Contact configuration	2 pole, CO (DPDT)
Rated contact voltage	250 V AC
Rated current (per pole)	12 A
Nominal coil voltage	12 V DC
Operating range	9.6...13.2 V DC
Coil resistance	≈ 140 Ω
Power consumption	≈ 1 W (86 mA)
Holding voltage	7.2 V
Drop-out voltage	1.2 V
Insulation (coil/contacts)	4 kV
Electrical life	100,000 cycles
Ambient temperature	–40 °C to +70 °C
Contact material	AgNi
Mounting	Plug-in (96 Series sockets) or flange adaptor with Faston 187 (4.8 × 0.5 mm)
Dimensions (W × L × H)	20.7 × 37.2 × 27.7 mm
Options	Lockable test button, mechanical indicator, LED indicator

Applications for This Finder 12V DC Coil Relay

Use this Finder DPDT relay in home automation, appliance control, and DIY electronics projects. The 12V DC coil relay can be driven directly by low-voltage control circuits, including microcontrollers and relay modules, while the high-current 12A 250V AC contacts safely switch larger loads. Its versatility makes it an excellent choice for compact, reliable, and long-lasting control solutions.

Product Identification

Series: Finder 56 | Type: 56.32.9.012.0070 | Product Code: 563290120070

Note: Technical data provided directly from Finder’s datasheet for this model.

12V DC Relays

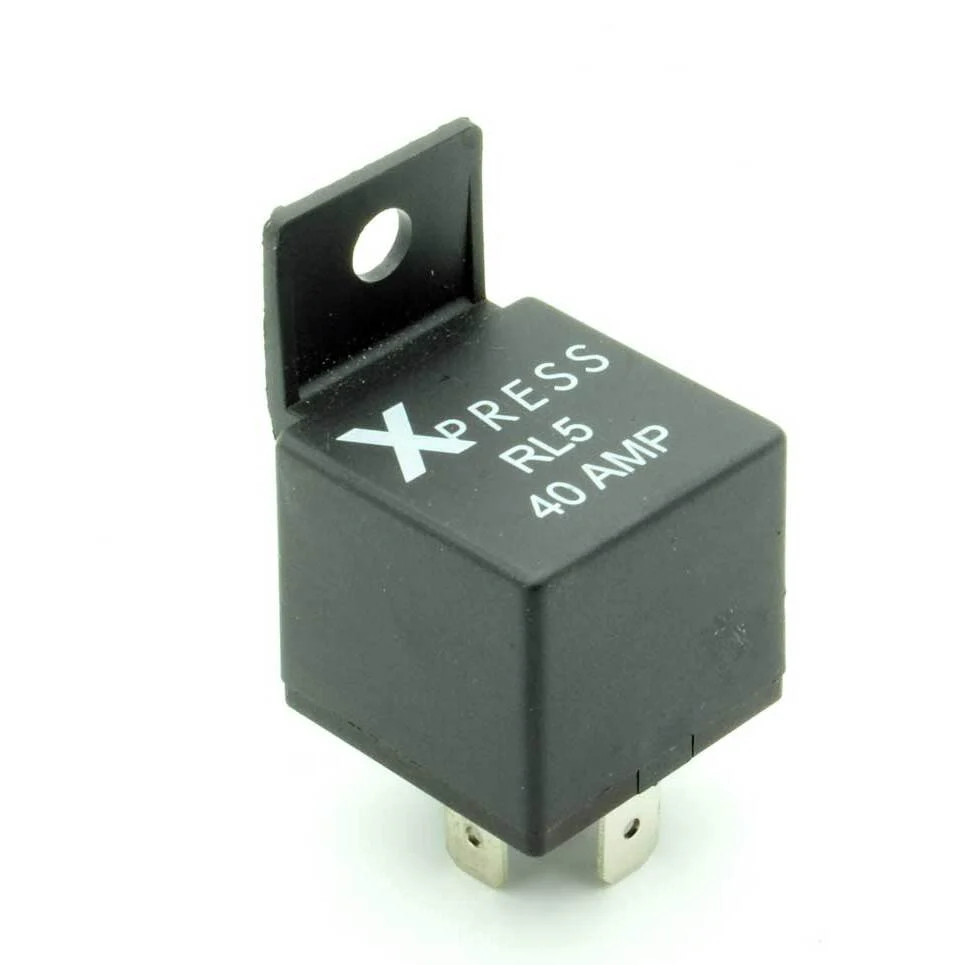

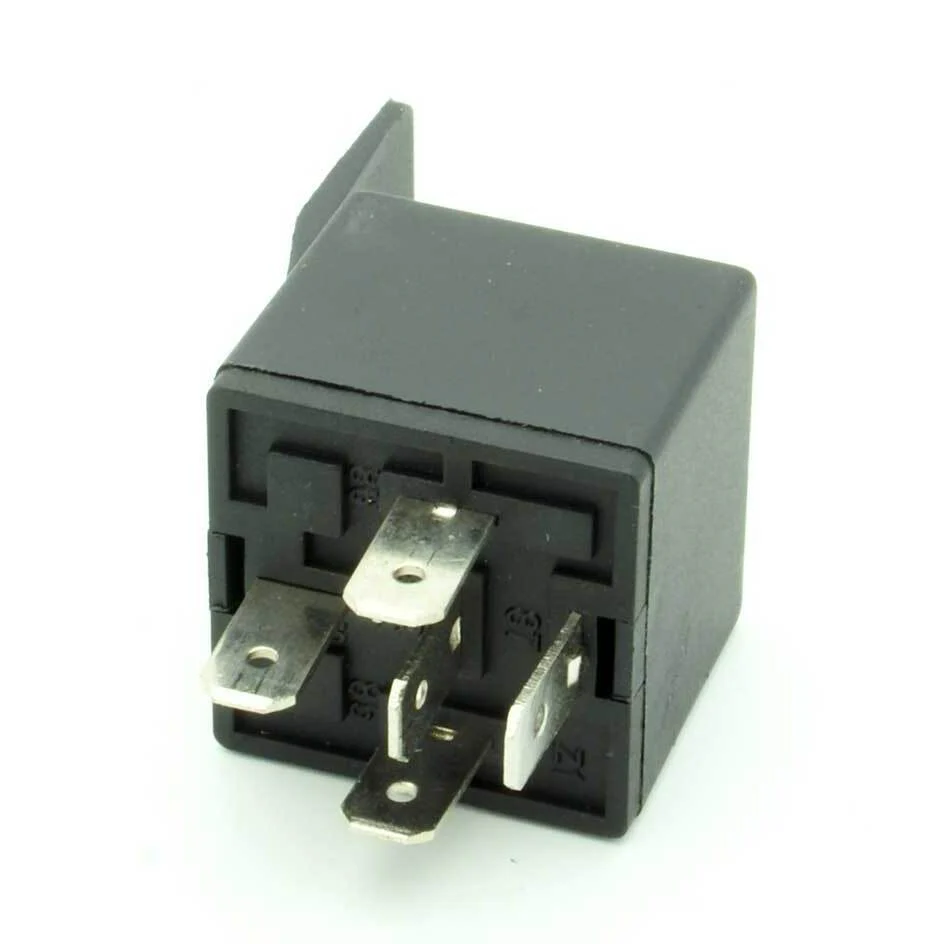

12VDC 40A SPDT Automotive Relay

12VDC 40A SPDT Automotive Relay - Metal Tab

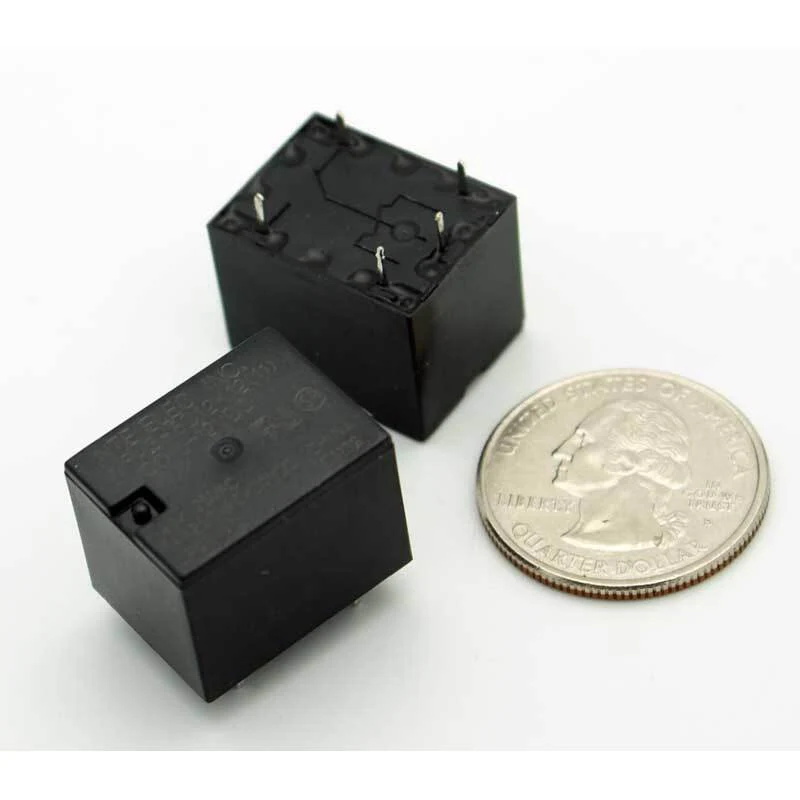

SPDT 12V DC Coil - 15 Amp Relay - Through Hole Board Mount (Replaces NTE R46-5D12-12)

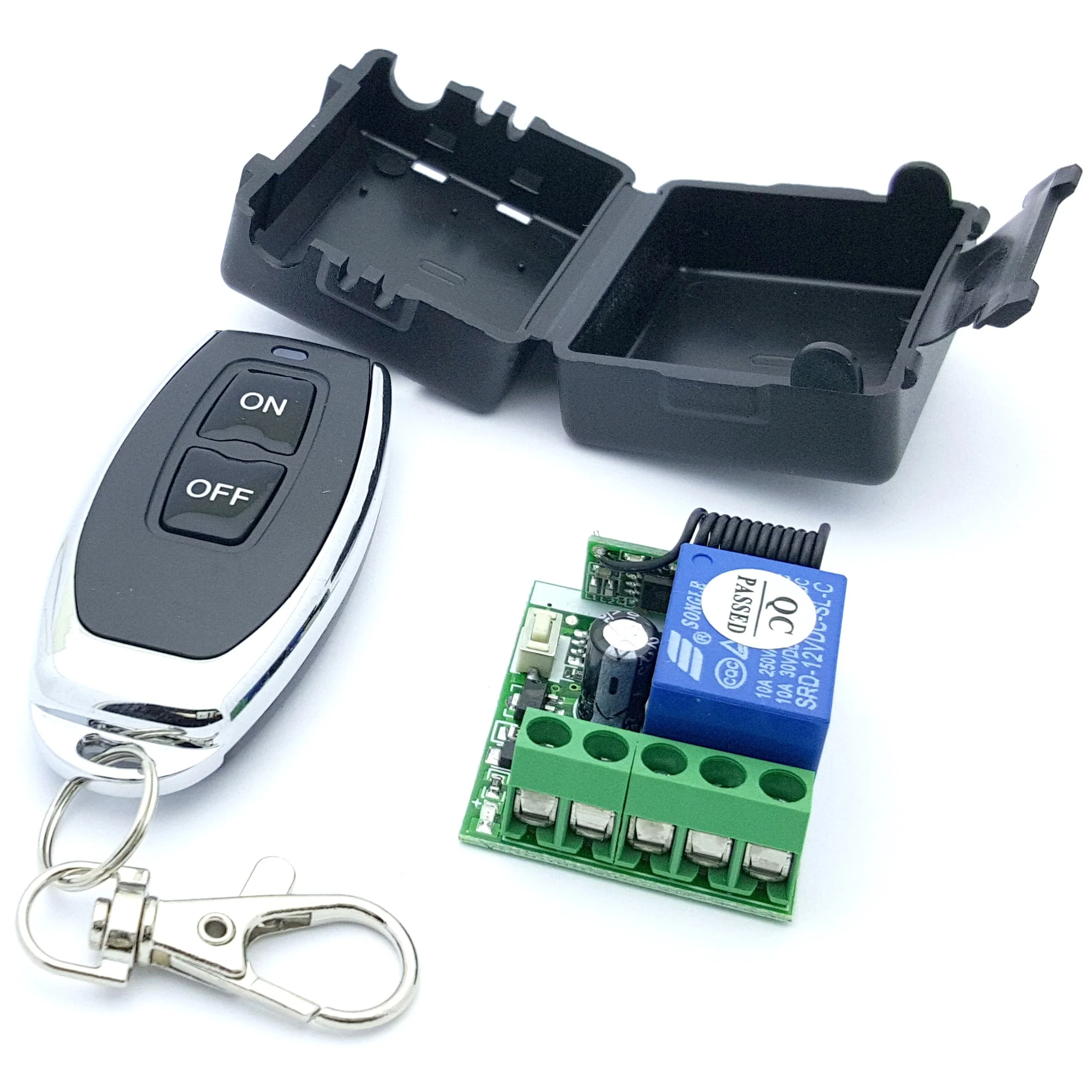

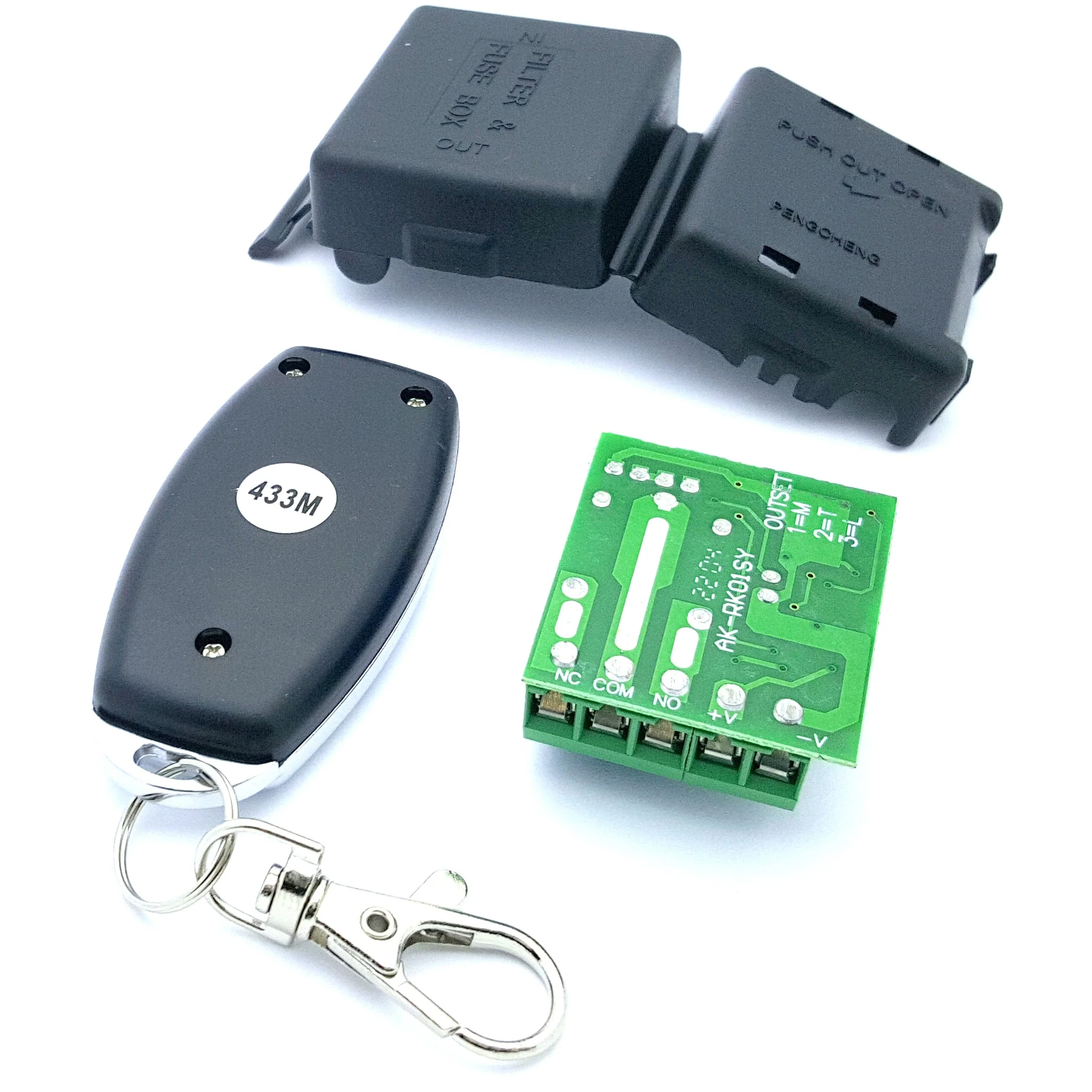

Wireless Remote Control Relay Module - 12V Powered

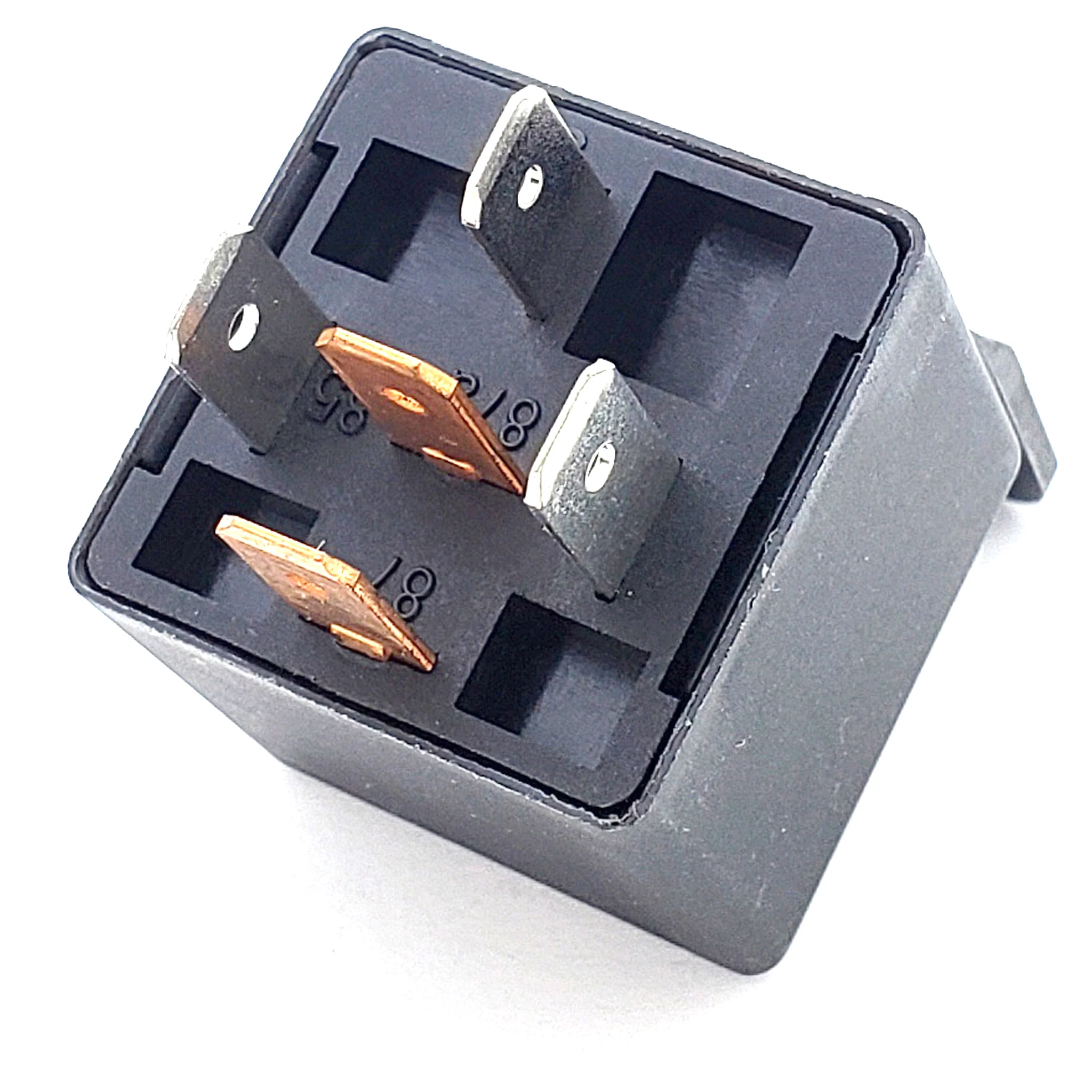

50 Amp 12V DC Relay - Automotive - Mounting Tab

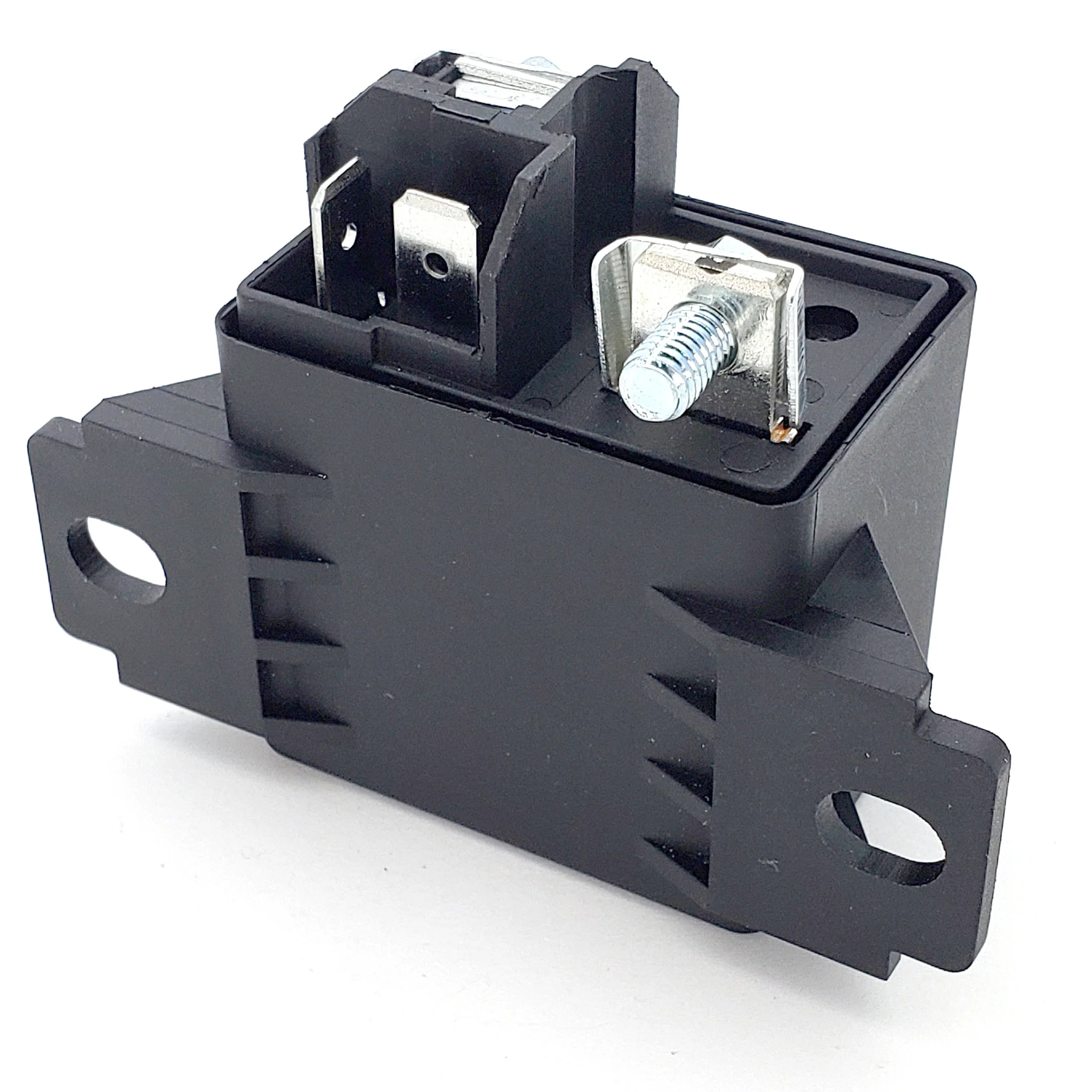

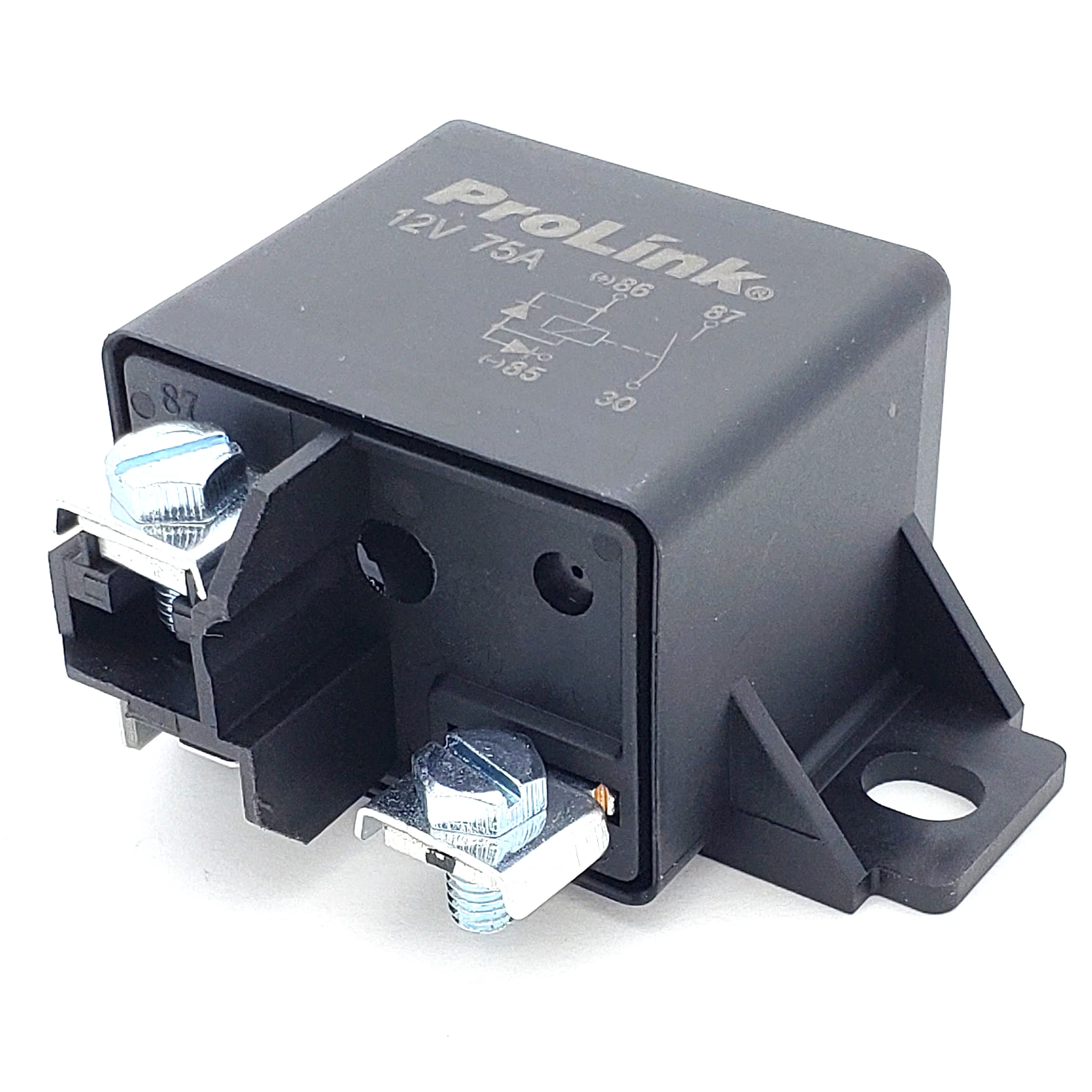

75 Amp 12V DC Relay Module - Universal - Easy Mount
