Finder Relay — DPDT 6V DC Coil, 12A 250V AC Contacts

Compact, Reliable Power Relay for Everyday Projects

The Finder 56.32.9.006.0070 is a miniature power relay designed for easy switching of appliances, lights, and automation circuits. With its plug-in socket design, this electrical relay is simple to install and replace, making it perfect for DIYers, hobbyists, and professionals alike.

Dual-Pole Relay with Strong Switching Power

This Finder relay features 2-pole changeover (DPDT/CO) contacts rated up to 12A at 250V AC. It safely controls household or low-industrial loads including pumps, fans, and lighting systems. The compact design (just 20.7 × 37.2 × 27.7 mm) ensures it fits easily into control panels and project enclosures.

Everyday Benefits of a Finder Control Relay

Easy installation: Plug-in mount for Finder 96 Series sockets; flange mount option with Faston 187 connections.
Clear status indicators: Lockable test button, optional mechanical position indicator, and double LED (non-polarized DC).
Durable: Rated for up to 100,000 electrical cycles of service life.
Safe: Strong 4kV coil-to-contact insulation and wide –40 °C to +70 °C operating range.
Compact footprint: Fits easily into tight spaces while delivering reliable switching capacity.

Key Technical Specs (Finder 56.32.9.006.0070)

Contact configuration	2 pole, CO (DPDT)
Rated contact voltage	250 V AC
Rated current (per pole)	12 A
Nominal coil voltage	6 V DC
Operating range	4.8...6.6 V DC
Coil resistance	≈ 40 Ω
Power consumption	≈ 1 W (150 mA)
Holding voltage	3.6 V
Drop-out voltage	0.6 V
Insulation (coil/contacts)	4 kV
Electrical life	100,000 cycles
Ambient temperature	–40 °C to +70 °C
Contact material	AgNi
Mounting	Plug-in (96 Series sockets) or flange adaptor with Faston 187 (4.8 × 0.5 mm)
Dimensions (W × L × H)	20.7 × 37.2 × 27.7 mm
Options	Lockable test button, mechanical indicator, LED indicator

Where to Use This Finder Relay

This miniature power relay is excellent for home automation, DIY electronics, appliance control, and low-industrial automation. The 6V DC coil can be driven by microcontrollers or low-voltage control circuits, while the 12A contacts handle higher current loads with ease. Its versatility makes it a trusted choice for hobby projects and professional control panels alike.

Product Identification

Series: Finder 56 | Type: 56.32.9.006.0070 | Product Code: 563290060070

Note: Technical values are provided directly from Finder’s datasheet for this model.

3V–6V DC Relays

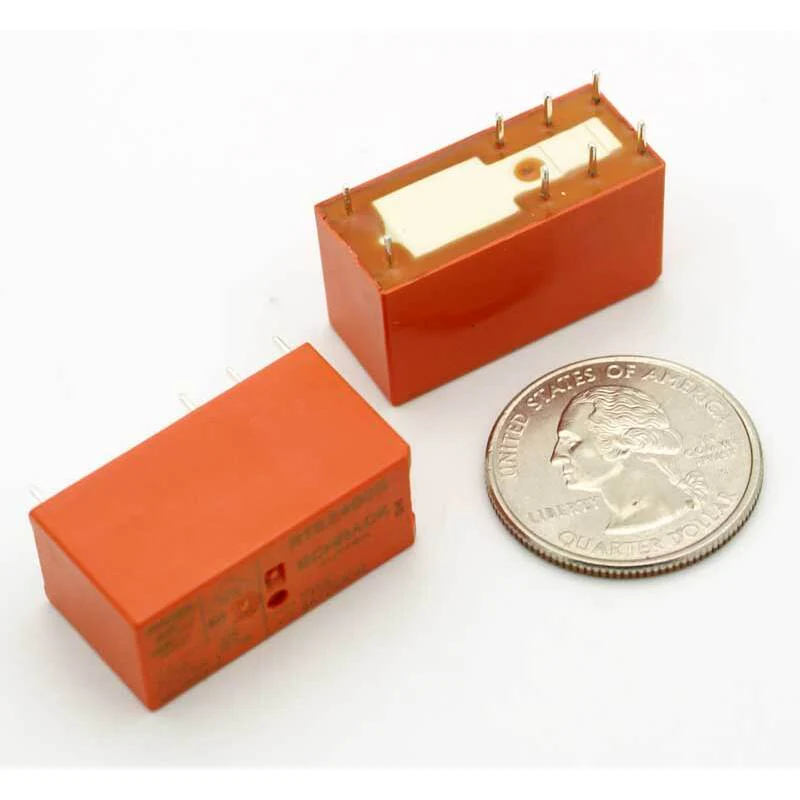

DPDT 5V DC Coil - 8A 250V AC Contacts - Power Relay - TE Connectivity RTE24005
