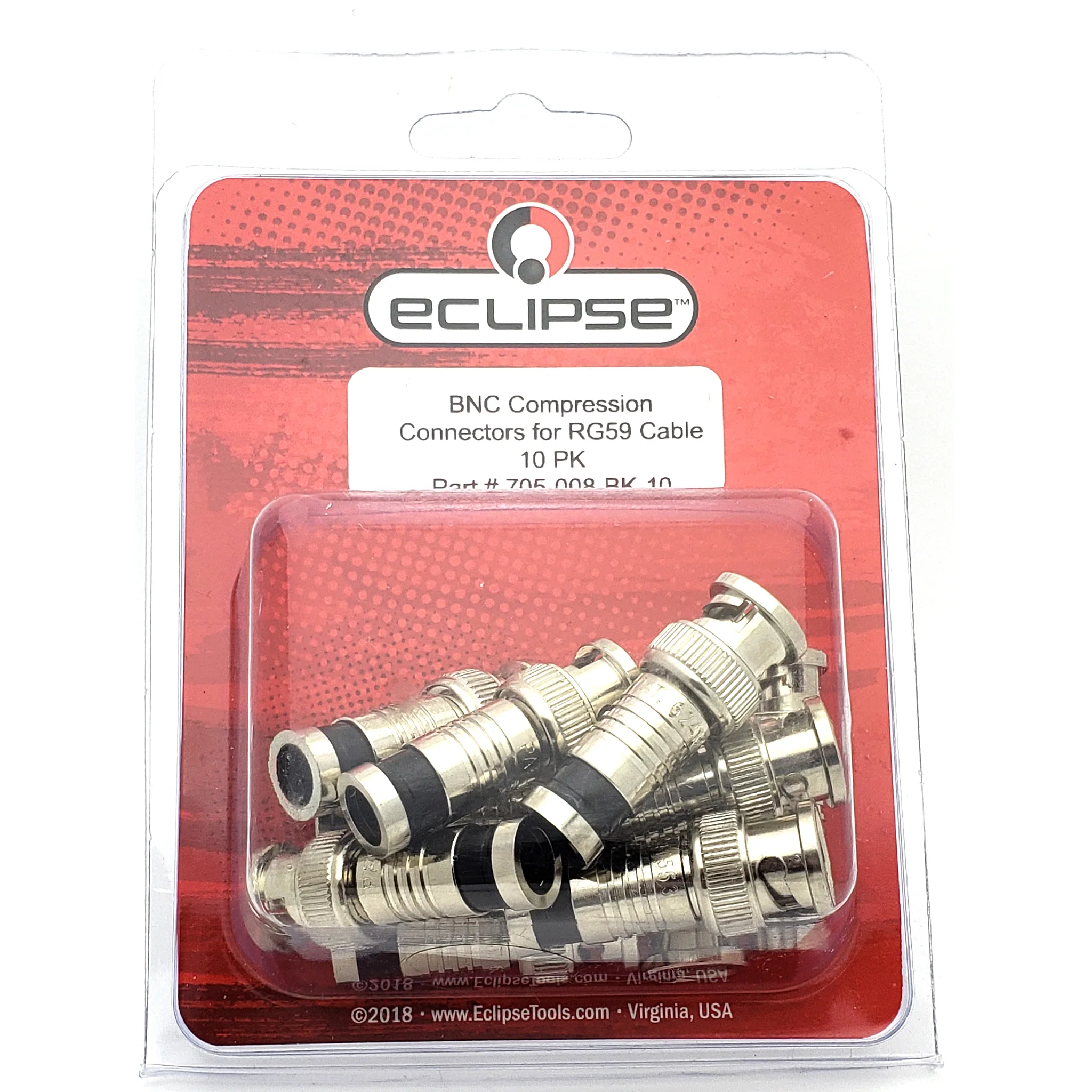

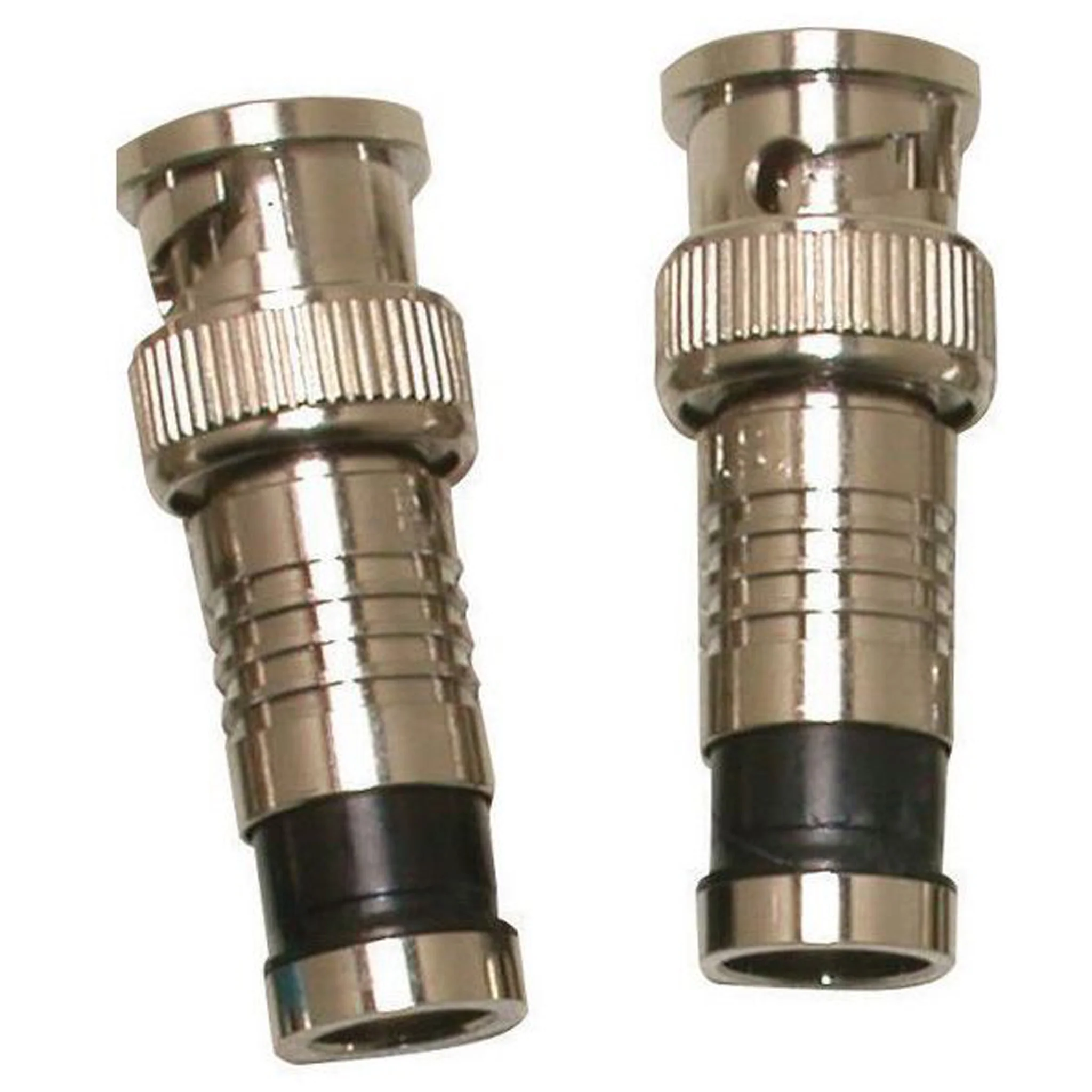

BNC Compression Connectors - RG59 - Ten Pack
Ensure reliable and high-quality video signal transmission with our BNC Compression Connectors for RG59 coaxial cables, available in a convenient ten-pack. These connectors are meticulously engineered to provide secure, durable, and efficient connections, making them ideal for CCTV installations, security camera systems, and various video applications.
Key Features:
-
Universal Compatibility: Designed to fit standard, tri-shield, and quad-shield RG59 coaxial cables, ensuring versatility across different cable types.
-
Compression Design: Utilizes a compression mechanism that molds the metal completely around the cable, providing a 360-degree radial compression for maximum signal integrity and resistance to environmental factors.
-
High-Quality Materials: Constructed with nickel-plated brass bodies and gold-plated contacts to ensure excellent conductivity, corrosion resistance, and long-term durability.
-
Easy Installation: Features a non-blind entry with a split ferrule design, allowing for straightforward cable insertion and secure termination without the need for specialized tools.
-
Professional Performance: Delivers superior return loss and impedance matching, ensuring minimal signal loss and optimal performance in high-frequency video transmissions.
Technical Specifications:
| Attribute | Specification |
|---|---|
| Connector Type | BNC Compression Connector |
| Cable Compatibility | RG59 Coaxial Cable (Standard, Tri-Shield, Quad-Shield) |
| Impedance | 75 Ohms |
| Return Loss | -35 dB (DC-1 GHz), -29 dB (DC-2 GHz), -32 dB (DC-3 GHz) |
| Center Conductor Diameter | 0.0317 - 0.0339 inches |
| Dielectric Diameter | 0.144 - 0.157 inches |
| Outer Jacket Diameter | 0.232 - 0.273 inches |
| Material | Nickel-Plated Brass Body, Gold-Plated Contact |
| Operating Temperature Range | -40°F to 140°F (-40°C to 60°C) |
Invest in this ten-pack of BNC Compression Connectors for RG59 cables to achieve professional-grade video connections that are both reliable and easy to install, ensuring the integrity and performance of your video systems.
