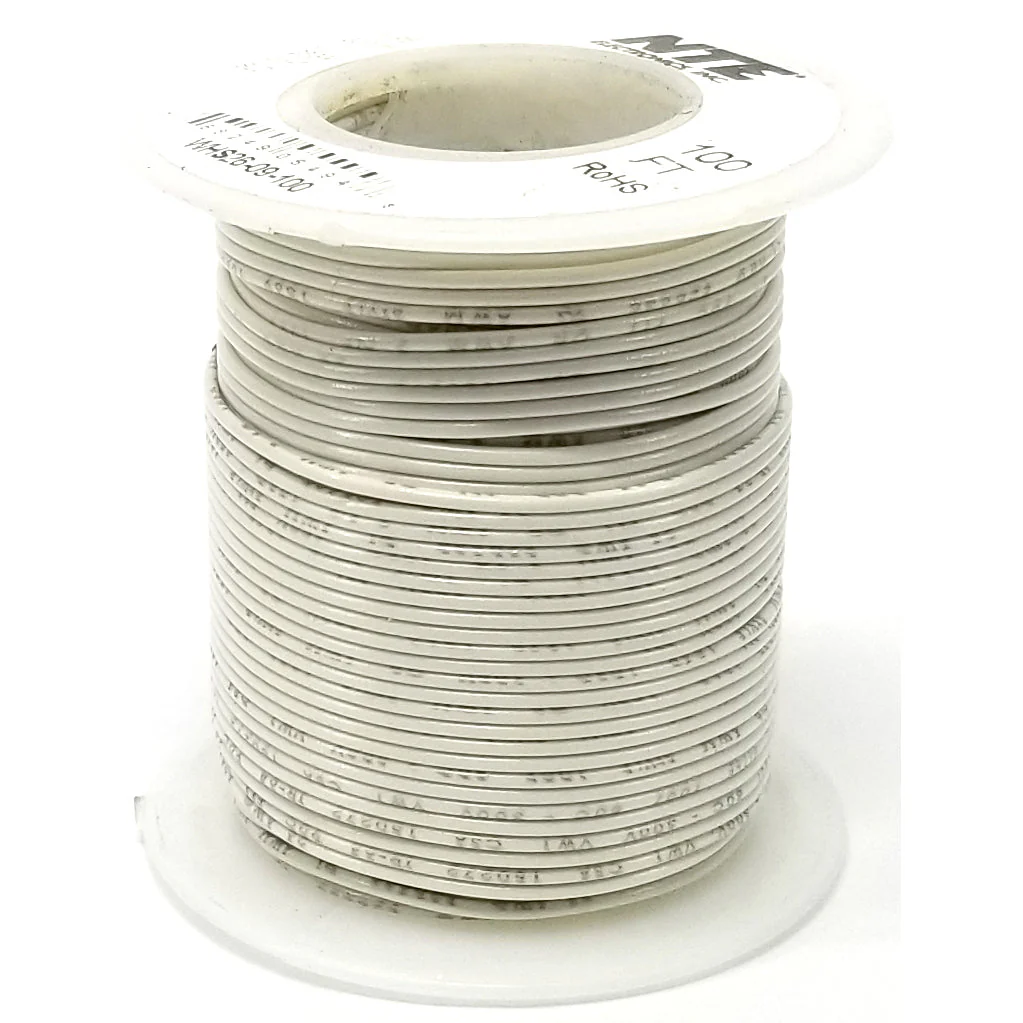

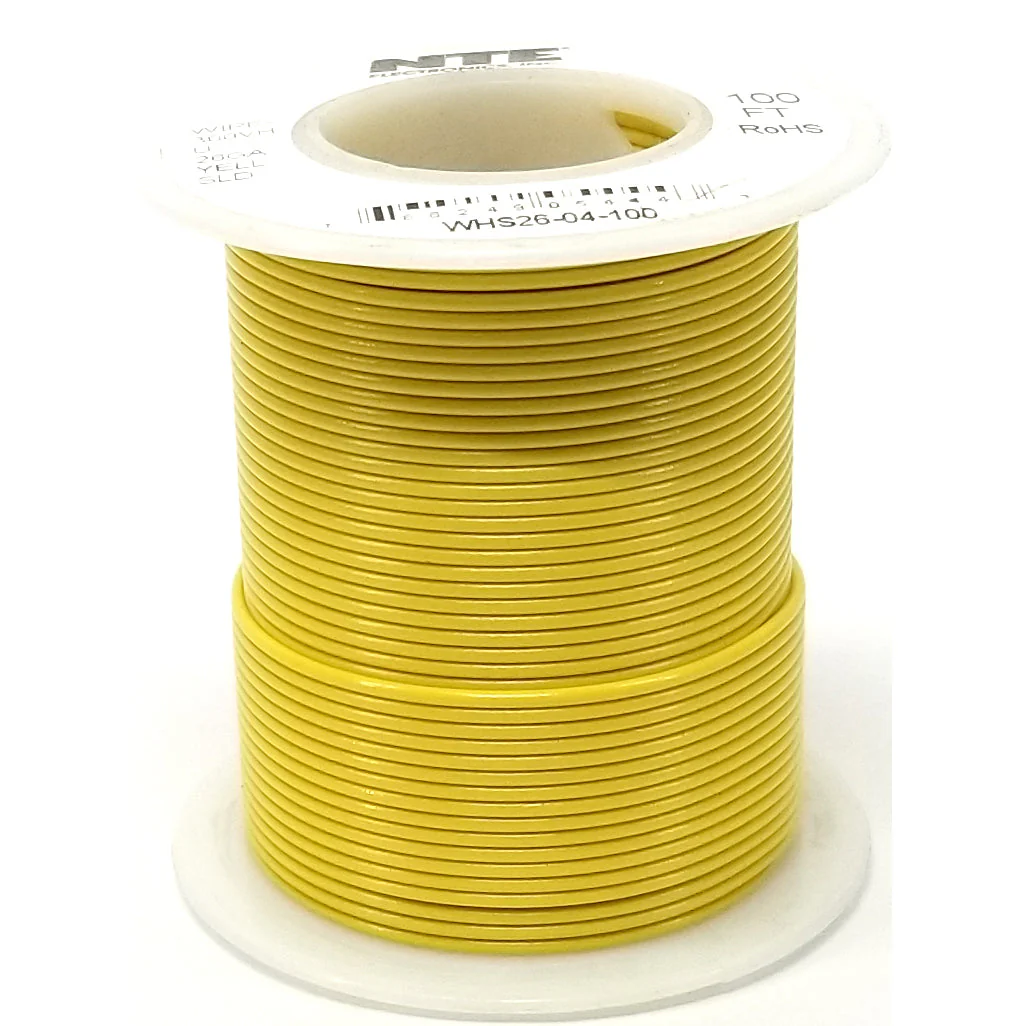

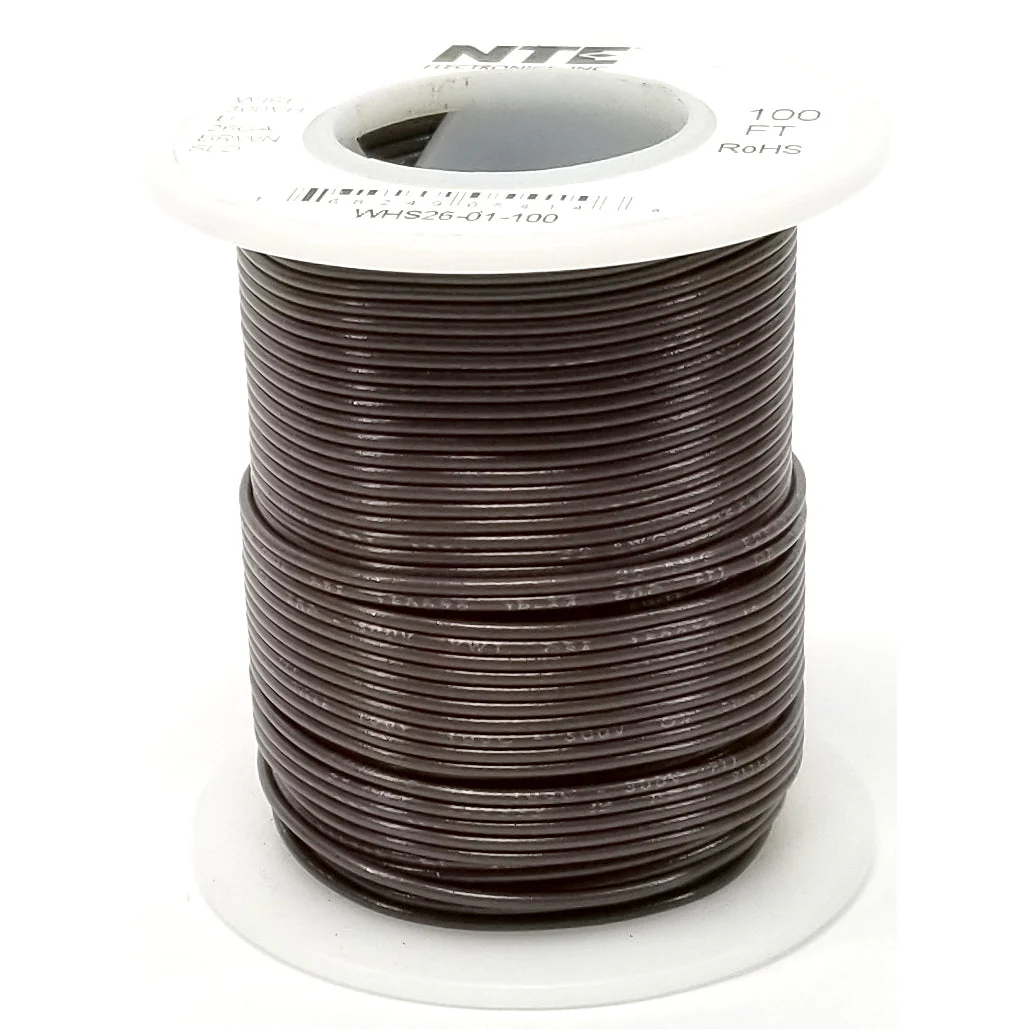

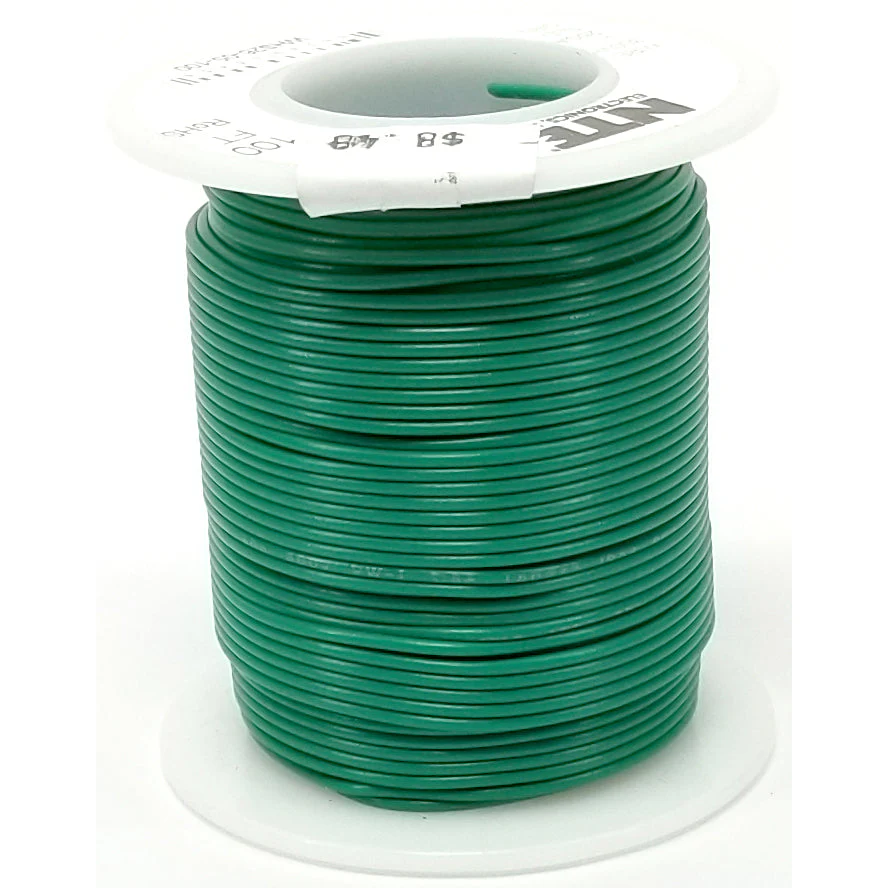

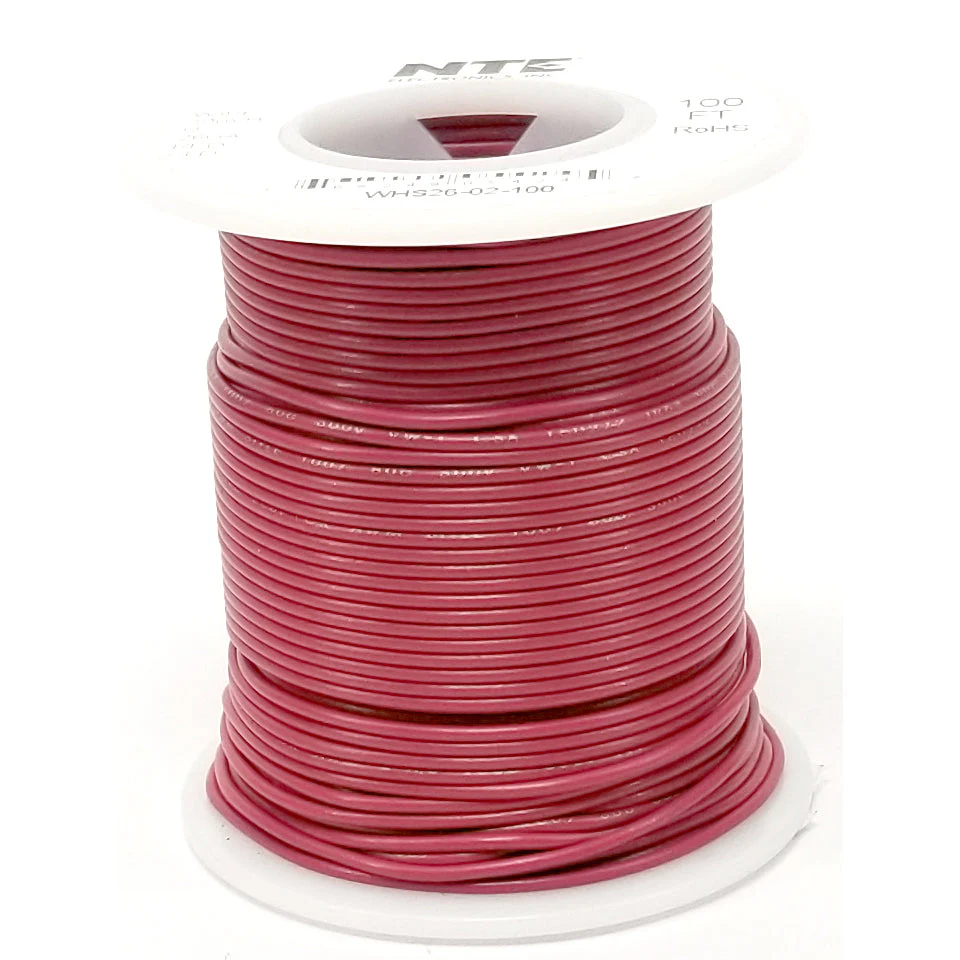

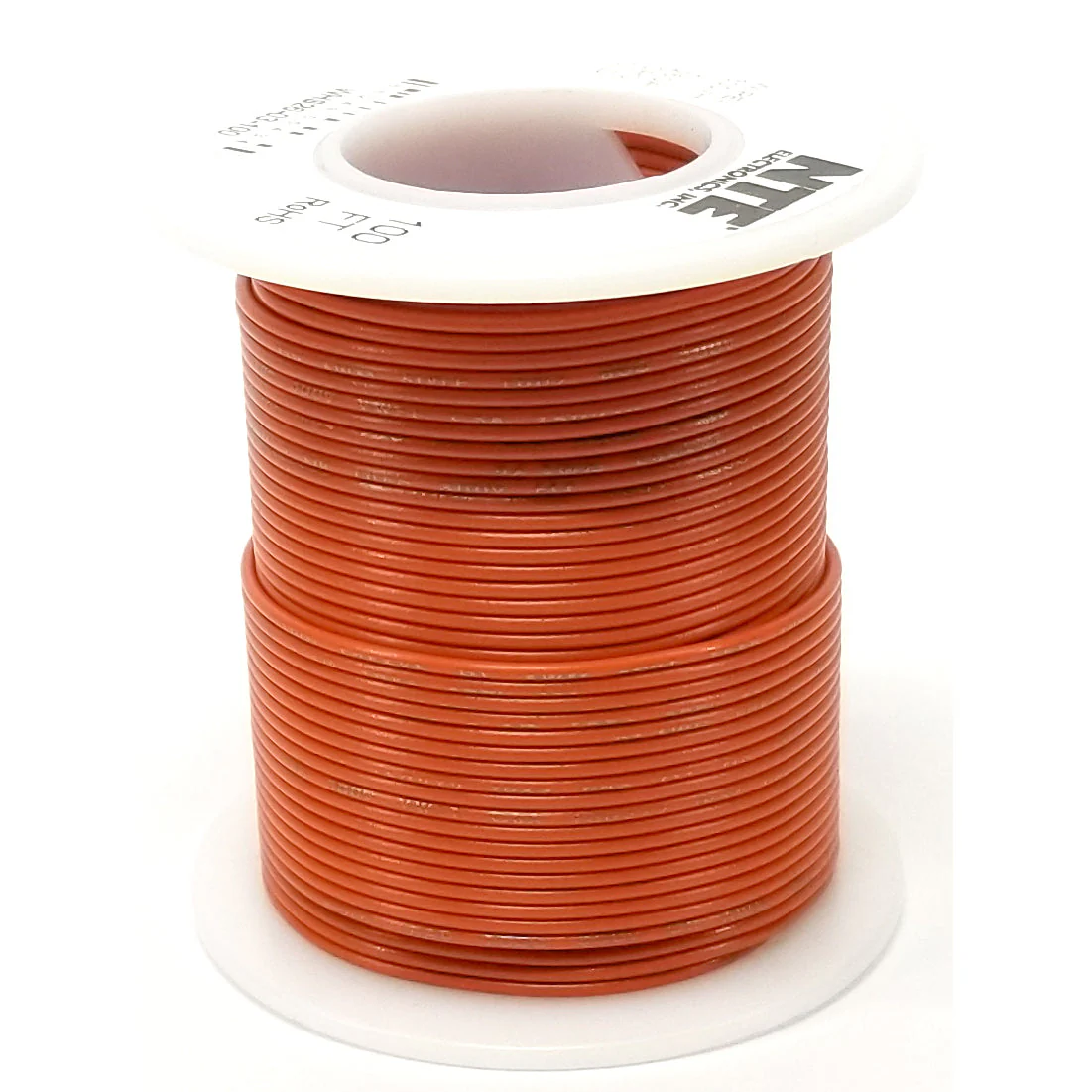

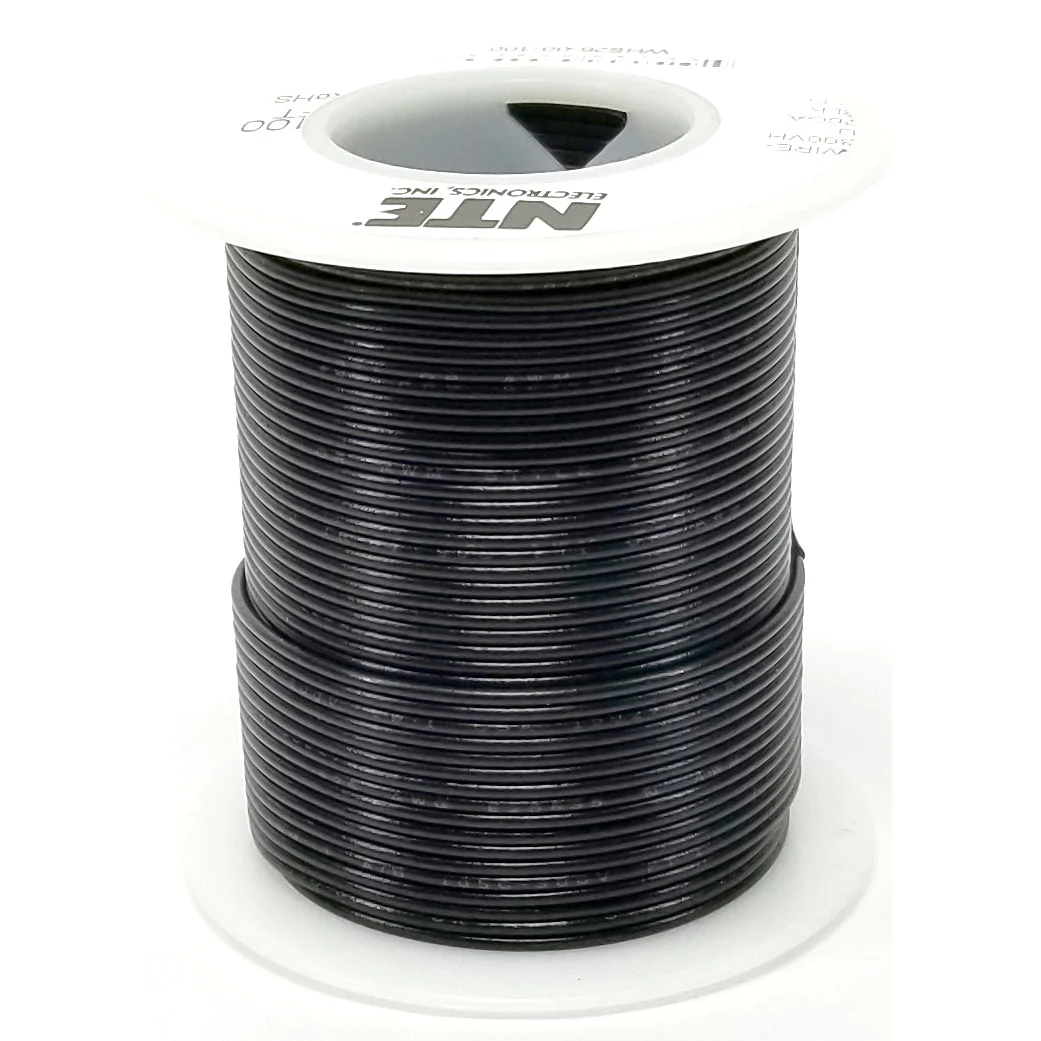

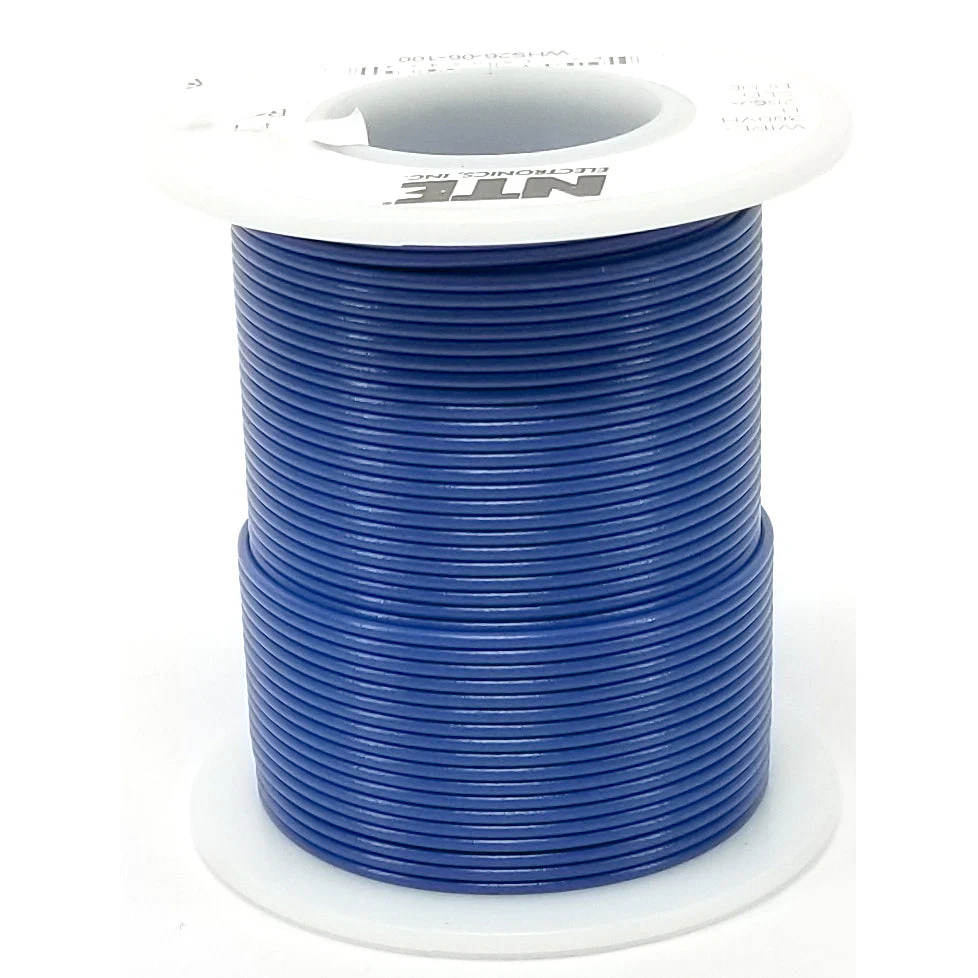

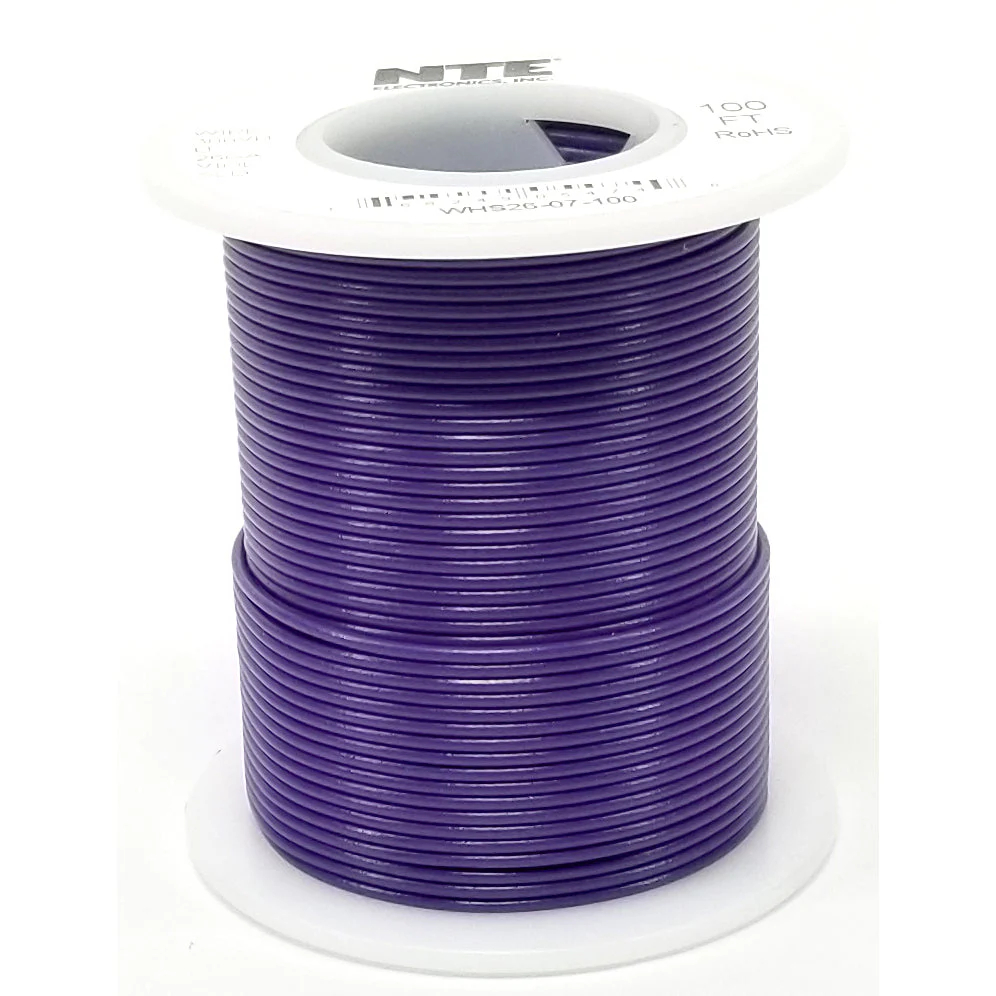

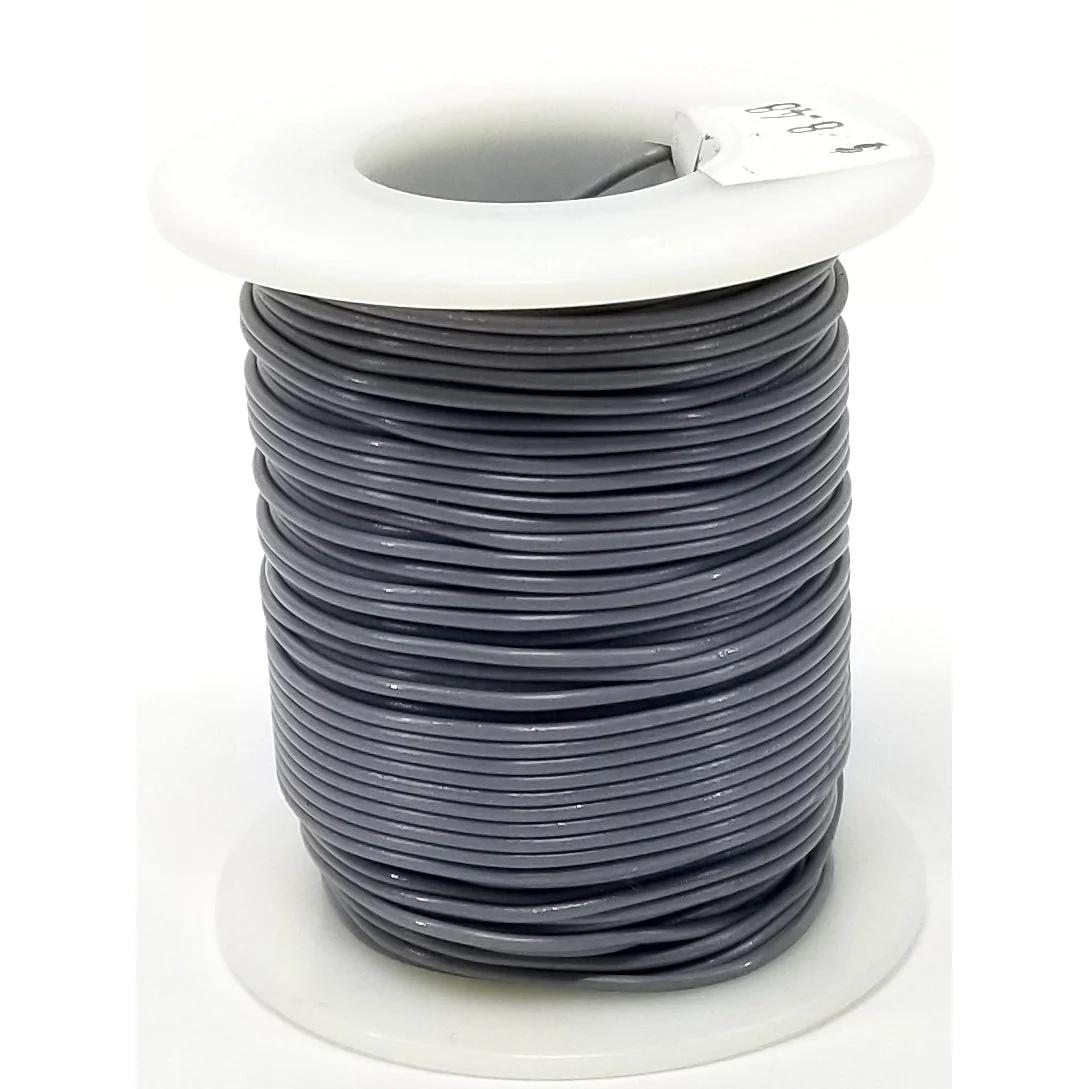

Hookup Wire, Solid, 22 Gauge
22 Gauge Solid Hookup Wire – Easy, Reliable Wiring for Your Projects
Perfect for Electronics, DIY, and Home Projects
This 22 gauge solid hookup wire is ideal for internal appliance wiring, point-to-point electronic connections, and hobbyist projects. It’s a top choice for anyone needing reliable, easy-to-use wire for breadboards, Arduino projects, or home repairs. Solid core hookup wire provides secure, stable connections, making wiring simple and straightforward.
Durable, Safe, and Built to Last
Our 22 AWG solid wire features fully annealed, tinned solid copper conductor that meets ASTM B-33 standards, offering excellent conductivity and corrosion resistance. The premium-grade, color-coded PVC insulation keeps your connections protected and easy to identify. This solid core electrical wire is resistant to moisture, oil, solvents, and fungus, ensuring safe use for home and hobby electronics.
Meets Stringent Safety Standards
This solid 22 gauge electrical wire is UL Listed (UL Style 1007) and CSA Listed (CSA TR-64), and it passes the UL VW-1 Vertical Flame Test for enhanced fire resistance. RoHS compliant, it's a smart and conscientious choice for any electronics project.
Technical Specifications
- Conductor: Fully annealed tinned solid copper per ASTM B-33
- Insulation: Premium-grade, color-coded PVC
- Temperature Range: -20°C to +105°C (-4°F to +221°F)
- Voltage Rating: 300 VAC
- Compliances: UL Style 1007 - 80°C, UL Style 1569 - 105°C, CSA TR-64 - 90°C, Designed to meet UL VW-1 Flame Test, RoHS Compliant
Common Uses for 22 AWG Solid Copper Hookup Wire
- Internal wiring of electrical and electronic equipment
- Internal wiring of panels and meters
- Point-to-point wiring for low-voltage circuits
- Breadboarding and prototyping for DIY electronics
- Model train and LED installations
22 Gauge Hookup Wire Technical Data
| Gauge (AWG) | Conductor Diameter | Finished Wire Diameter | Max. Resistance (DC at 20°C) Ohm/per | Nom. Weight | ||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./1000 ft. | KG/Km | |
| 18 | .0402 | 1.02 | .0717 | 1.82 | 6.77 | 22.2 | 6.70 | 9.97 |
| 20 | .0320 | .813 | .0635 | 1.61 | 10.7 | 35.2 | 4.64 | 6.91 |
| 22 | .0253 | .643 | .0568 | 1.44 | 18.1 | 59.4 | 3.39 | 5.04 |
| 24 | .020 | .511 | .0516 | 1.31 | 28.7 | 94.2 | 2.47 | 3.68 |
| 26 | .0159 | .404 | .0472 | 1.20 | 45.8 | 150 | 1.86 | 2.75 |
Why Choose Vetco for Your 22 Gauge Solid Hookup Wire?
Our 22 AWG solid copper hookup wire is trusted by hobbyists and DIYers for its flexibility, durability, and safety. If you need advice on selecting the best solid core hookup wire for your project, our expert support team is always ready to help.
