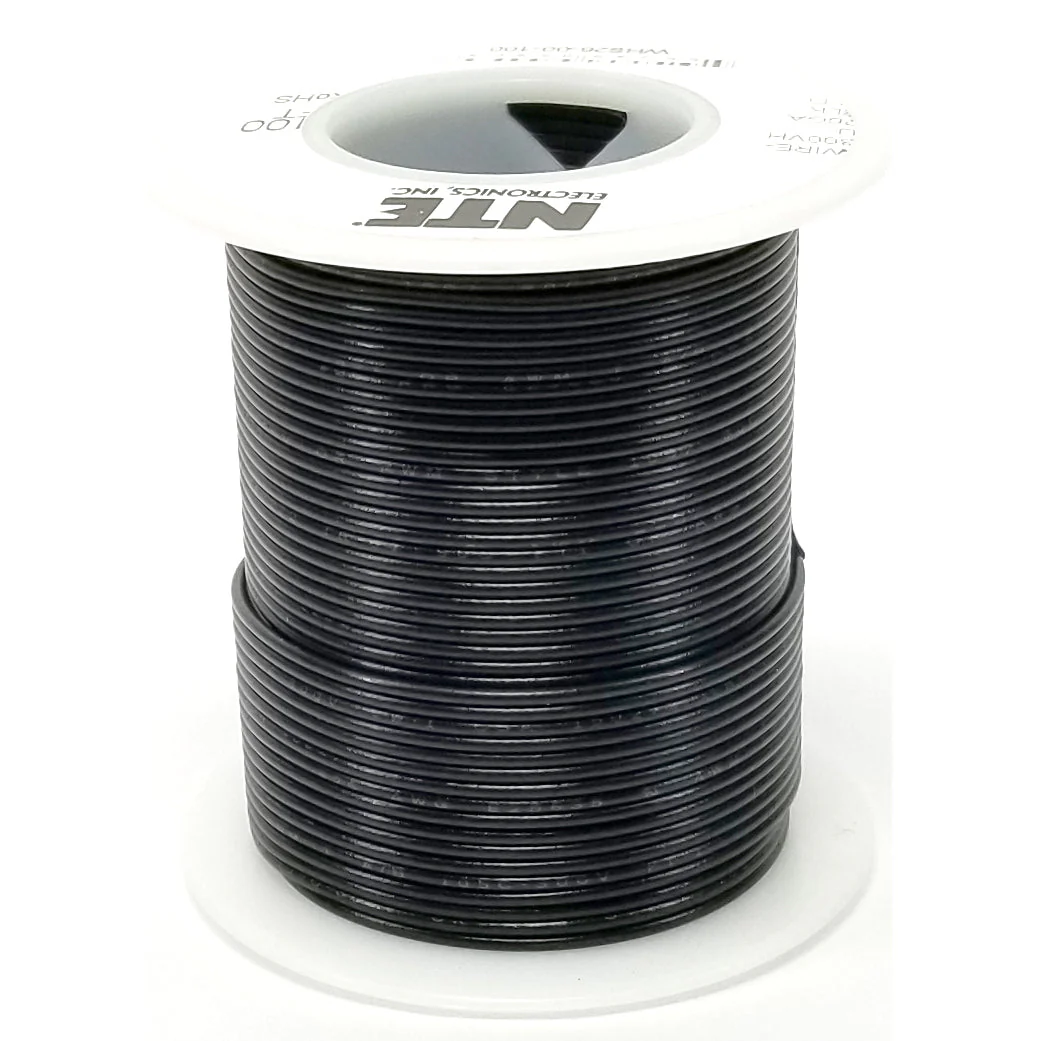

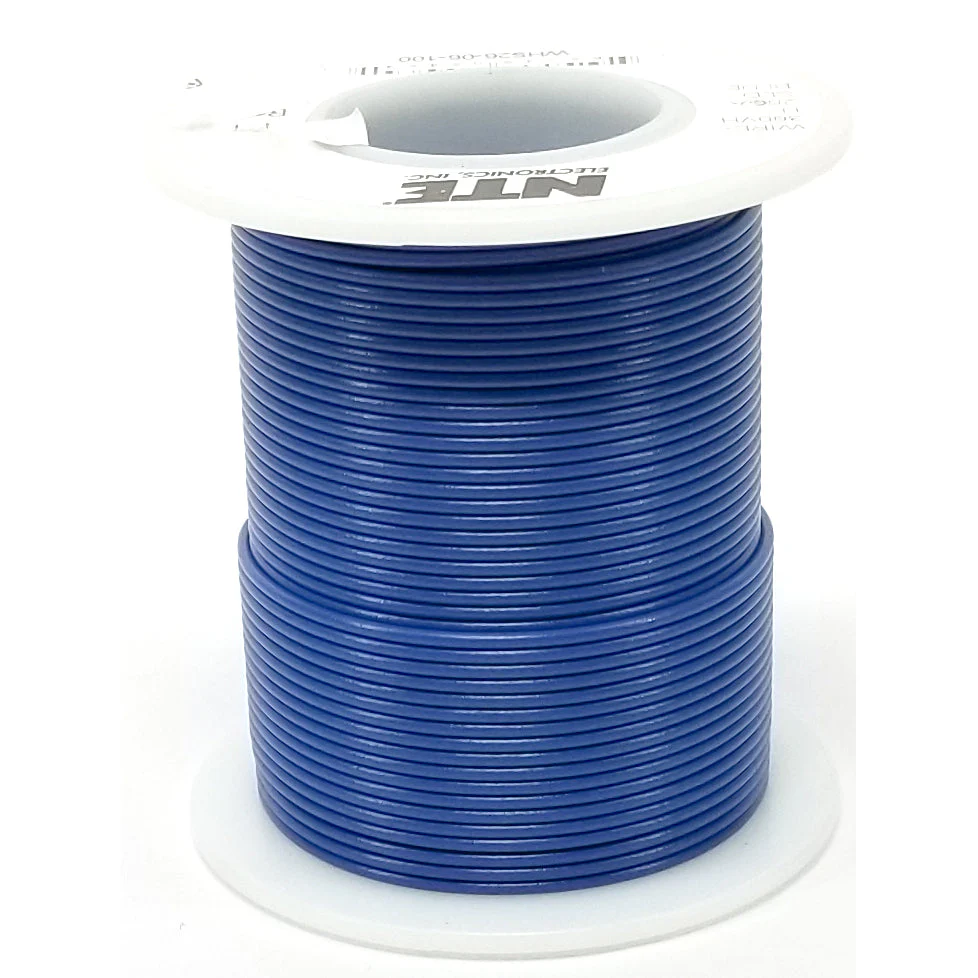

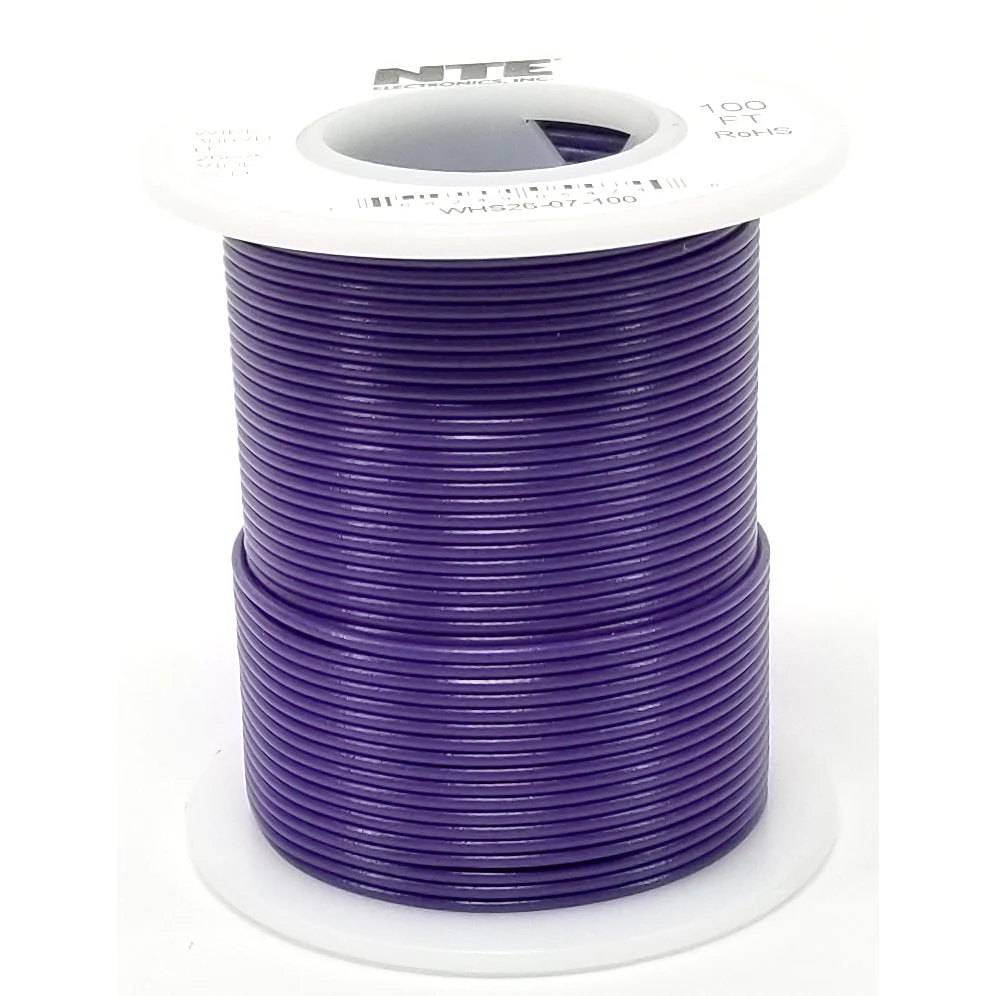

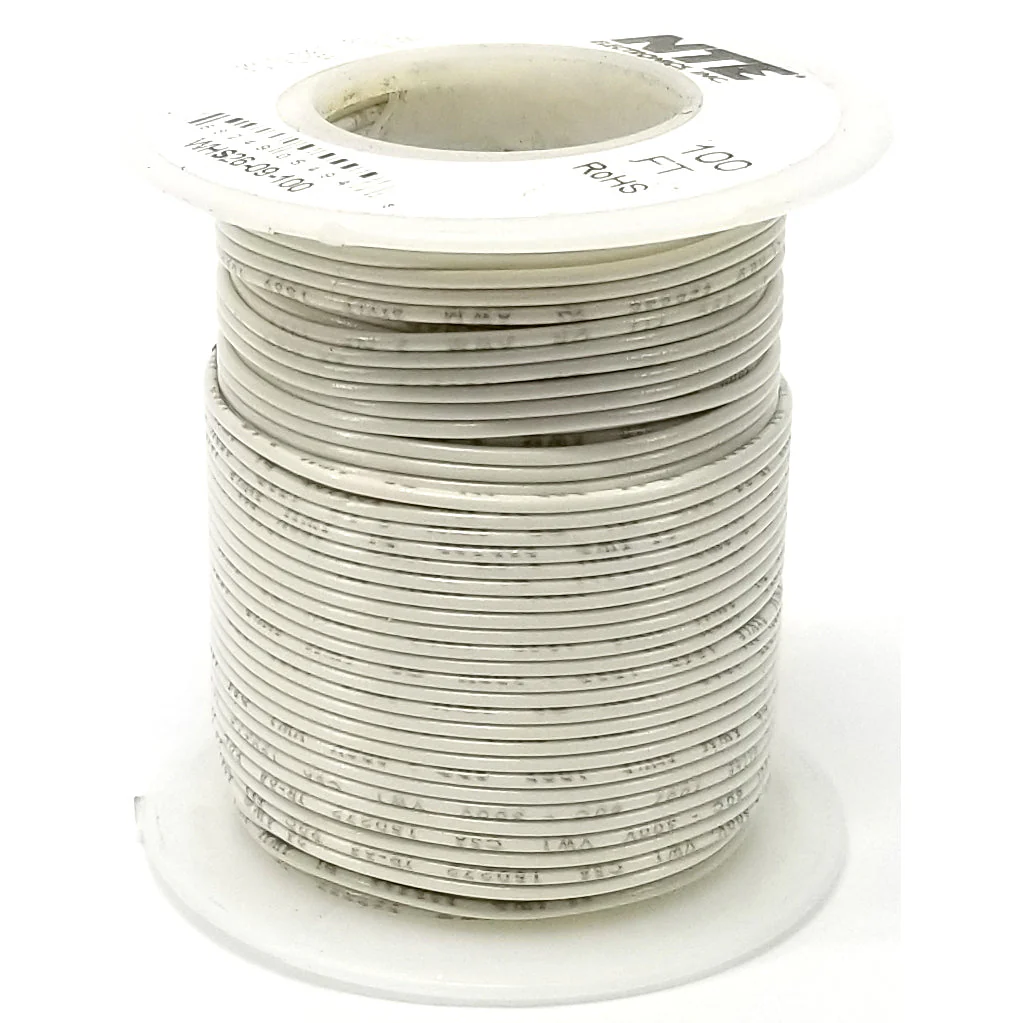

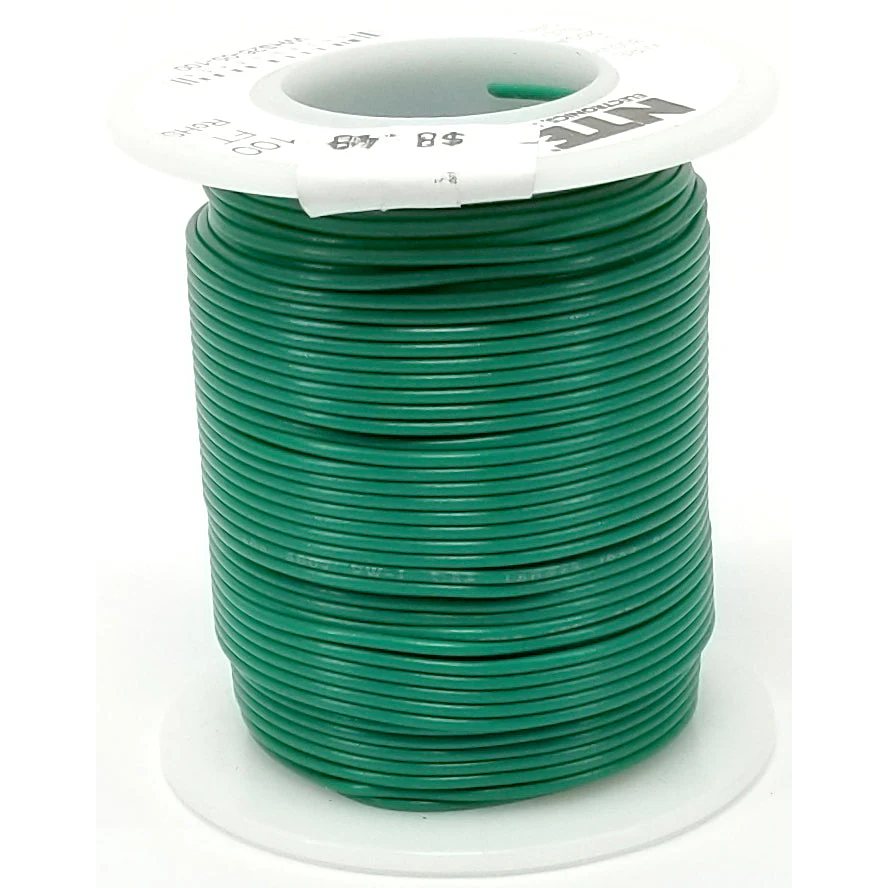

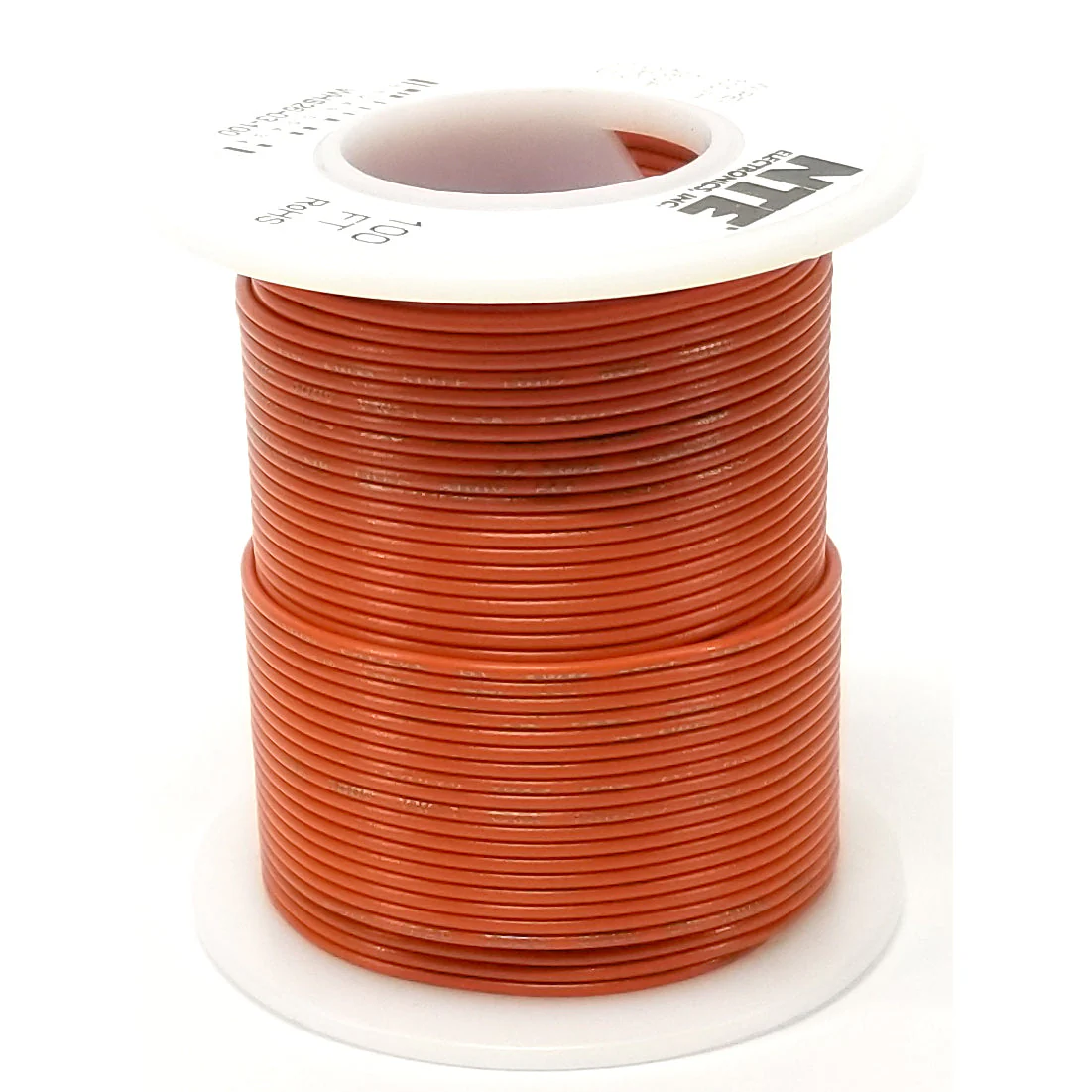

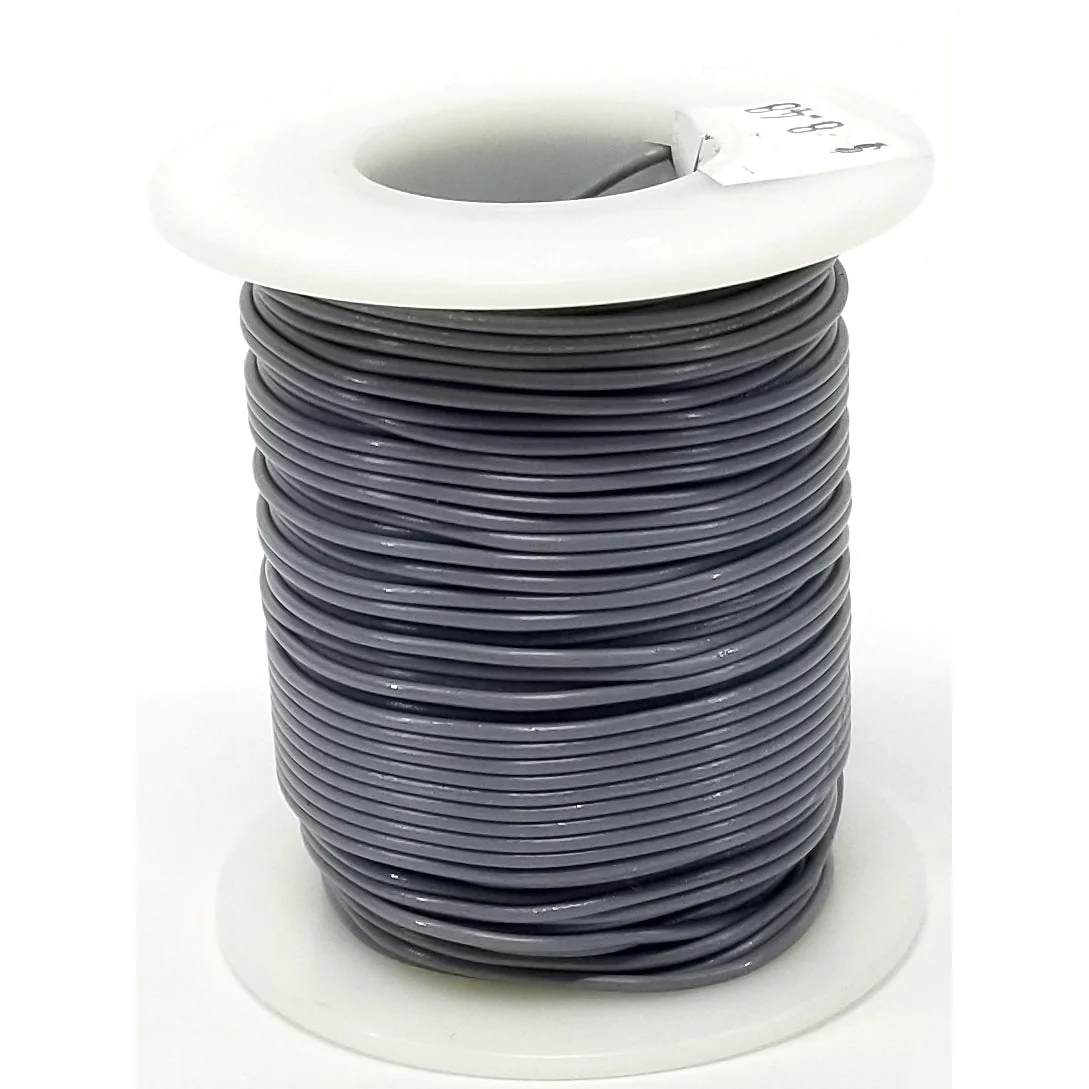

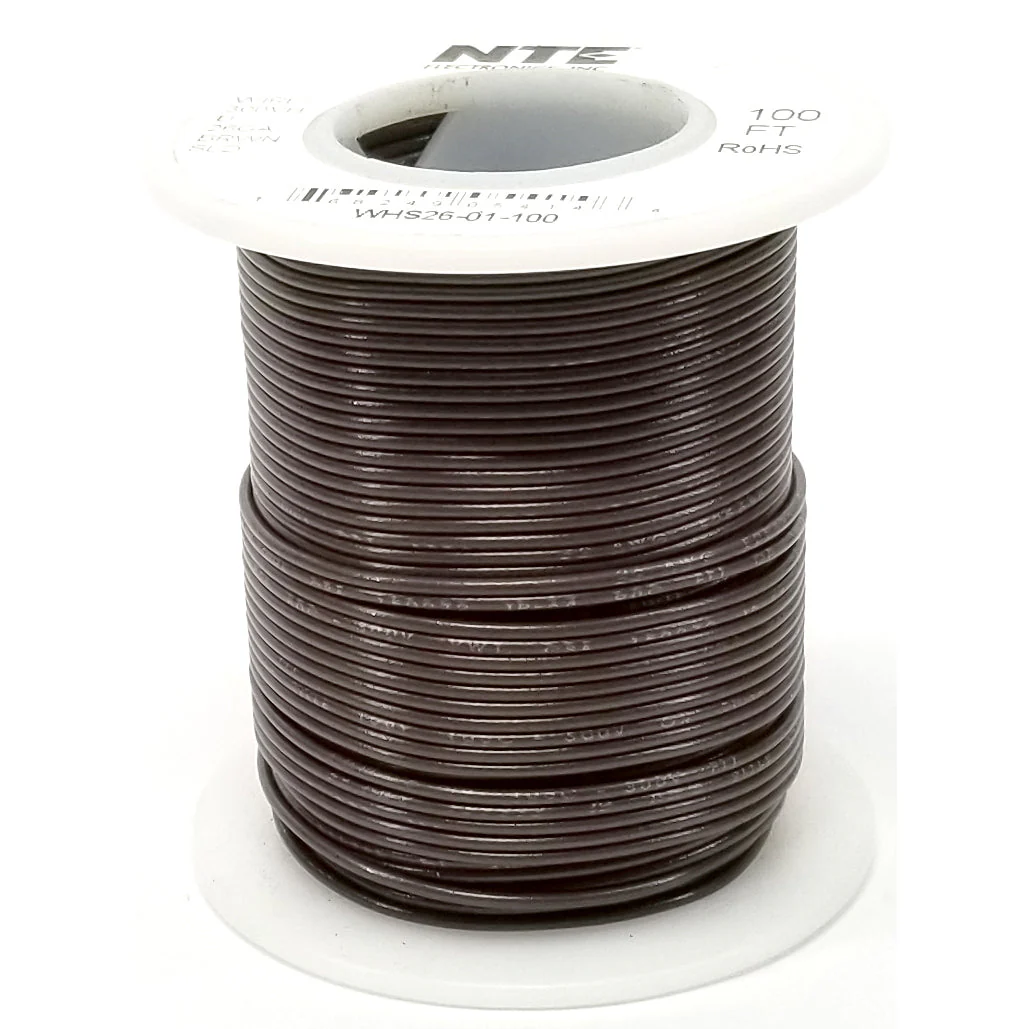

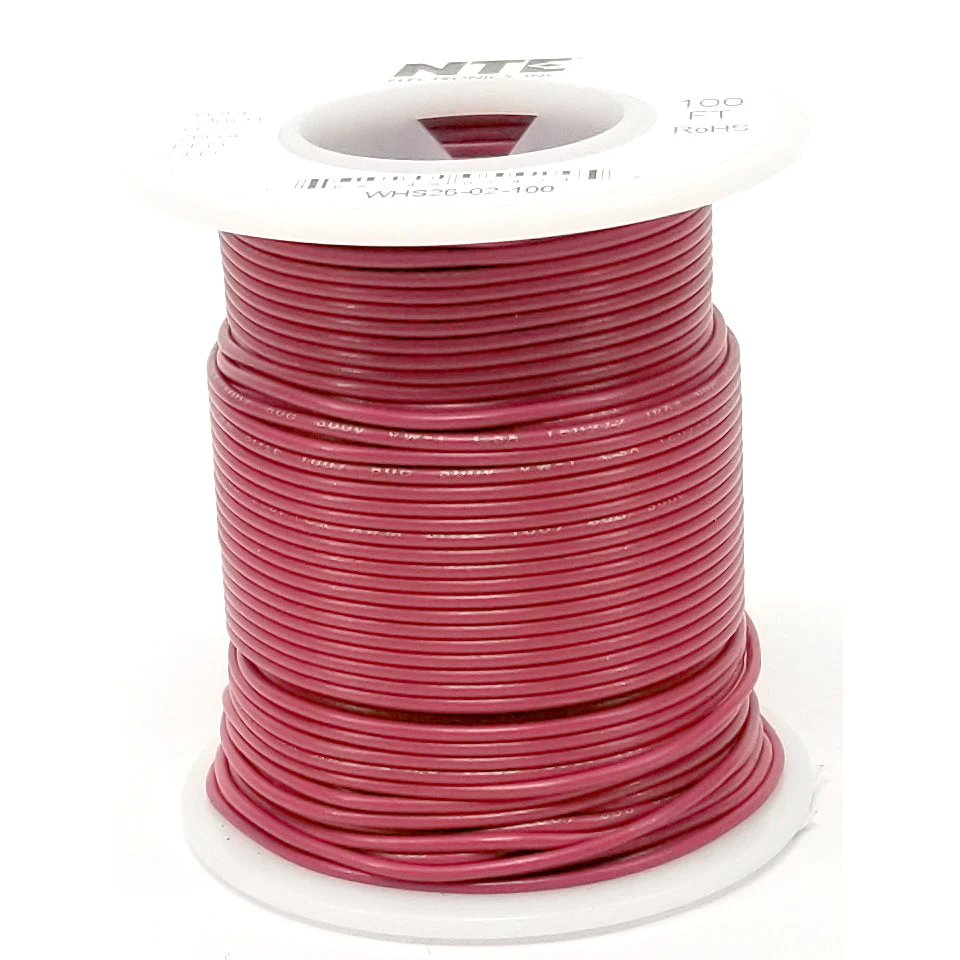

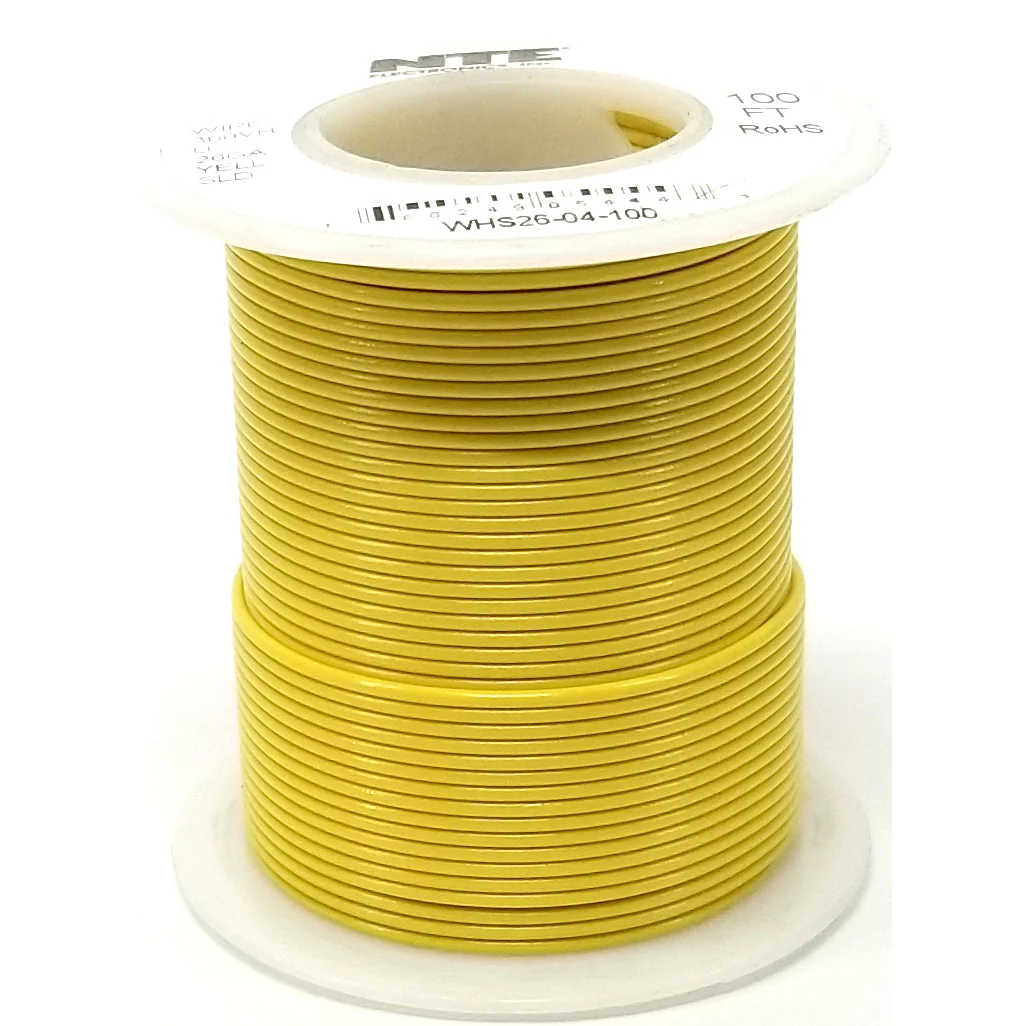

Hookup Wire, Stranded, 20 Gauge
20-Gauge Stranded Hookup Wire – 20 AWG Tinned Copper, PVC Insulated, UL 1007
Easy-to-Use 20-Gauge Stranded Hookup Wire for Electronics & DIY
Upgrade your next project with our 20-gauge stranded hookup wire, the perfect choice for hobbyists, DIY electronics work, and internal appliance wiring. Flexible and convenient to handle, this 20 AWG stranded wire is great for point-to-point wiring in devices, control panels, and more. The stranded construction adds extra flexibility, making installation in tight spaces simple and fast.
Durable, Color-Coded & Safe
Our 20-gauge electrical wire features fully annealed, tinned copper conductors for reliable conductivity and corrosion resistance. The premium-grade, color-coded PVC insulation makes circuit identification easy and keeps your connections protected from moisture, oil, solvents, and fungus—ideal for long-lasting projects and repairs.
Fully Certified Stranded Hookup Wire
You get peace of mind with our stranded hookup wire, which passes the tough VW-1 Vertical Flame Test and meets leading safety standards:
- UL Listed, UL Style 1007
- CSA Listed, CSA TR-64
- RoHS Compliant
Key Features of 20 AWG Stranded Wire
- Flexible stranded construction – Easy to route and bend
- Fully annealed tinned copper per ASTM B-33
- PVC insulation is resistant to harsh environments
- Color-coded for simple wire tracing
- Temperature rated: -20°C to +105°C (-4°F to +221°F)
- Voltage rating: 300 VAC
Perfect Applications
- Internal electrical and electronic wiring
- Panel wiring and meter wiring
- DIY, hobby, robotics, model making
Technical Specifications
Conductor: Fully annealed tinned copper (stranded) per ASTM B-33
Insulation: Premium-grade, color-coded PVC
Temperature Range: -20°C to +105°C (-4°F to +221°F)
Compliances: UL Style 1007 - 80°C, UL Style 1569 - 105°C, CSA TR-64 - 90°C, Designed to meet UL VW-1 Vertical Wire Flame Test, RoHS Compliant
Voltage Rating: 300 VAC
Wire Gauge and Technical Table
| Gauge (AWG) | Conductor Diameter | Finished Wire Diameter | Max. Resistance (DC at 20°C) Ohm/per | Nom. Weight | ||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./1000 ft. | KG/Km | |
| 18 | .0402 | 1.02 | .0717 | 1.82 | 6.77 | 22.2 | 6.70 | 9.97 |
| 20 | .0320 | .813 | .0635 | 1.61 | 10.7 | 35.2 | 4.64 | 6.91 |
| 22 | .0253 | .643 | .0568 | 1.44 | 18.1 | 59.4 | 3.39 | 5.04 |
| 24 | .020 | .511 | .0516 | 1.31 | 28.7 | 94.2 | 2.47 | 3.68 |
| 26 | .0159 | .404 | .0472 | 1.20 | 45.8 | 150 | 1.86 | 2.75 |
Original: $7.79
-65%$7.79
$2.73More Images
