Meisei Tools HOTNIFE® - Hot Knife Complete Non-ESD Safe Station (Includes M-10 + 2A)

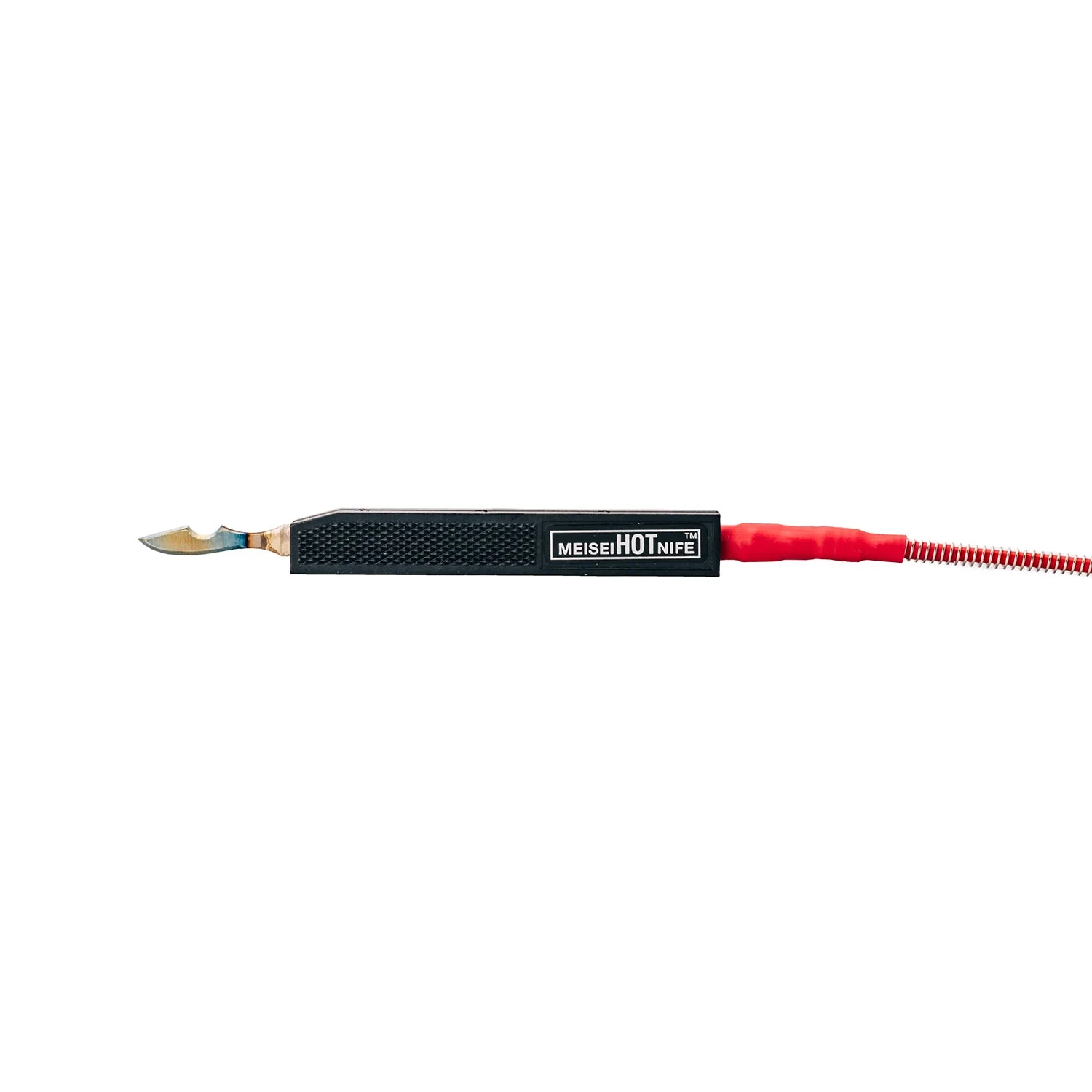

HOTNIFE™ THERMAL WIRE STRIPPER STATION - STANDARD
Meisei’s HOTNIFE™ comes in both Standard and Electrostatic Discharge (ESD) versions. The 2 Series HOTNIFE™ is the Standard version and the 3 Series HOTNIFE™ is the ESD version.
Your are CURRENTLY looking at the NON-ESD safe Standard version. For the ESD safe version, CLICK HERE
Product Features
- Heating element is completely sealed in a high-temp alloy preventing oxidation and improving heat transfer efficiency

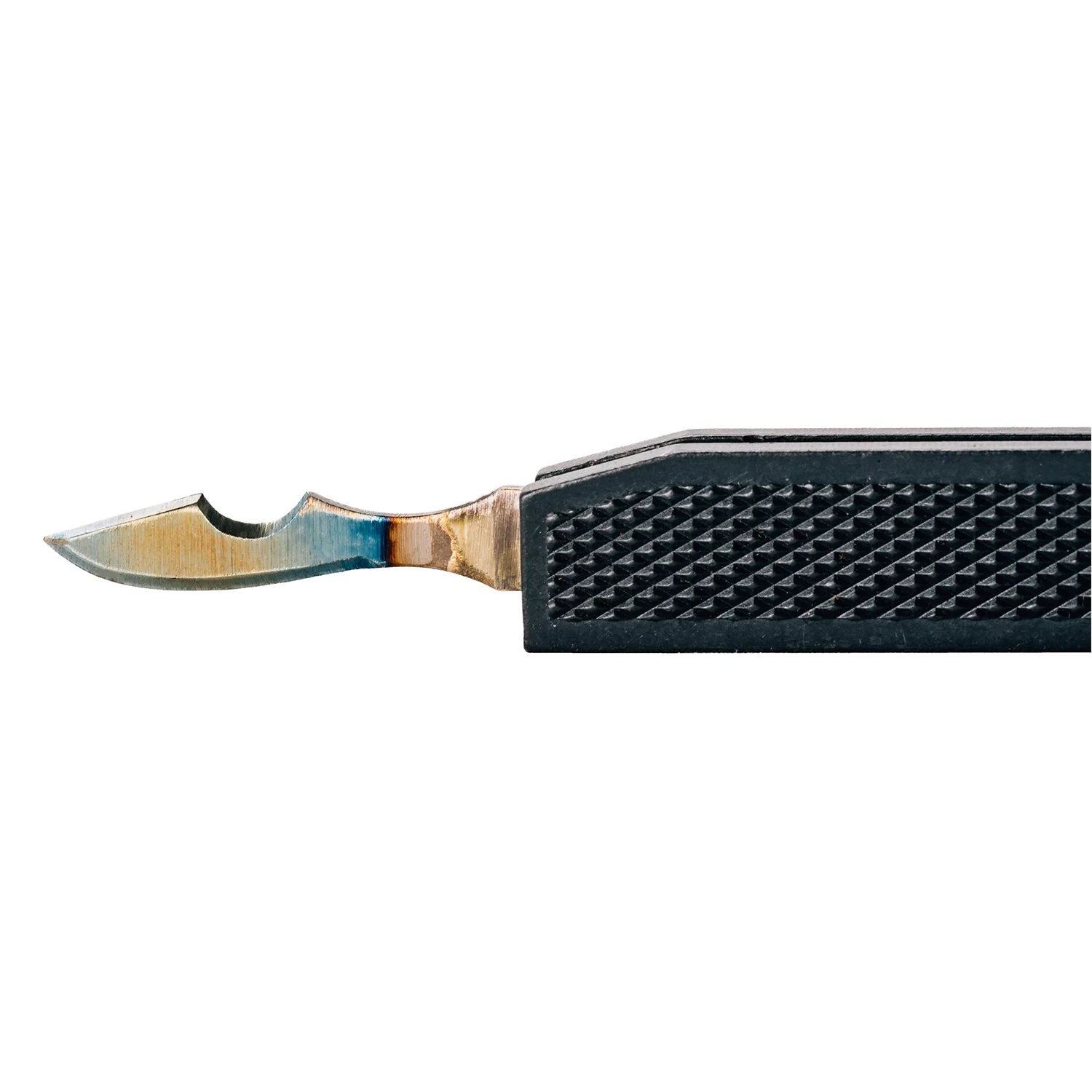

- Finely honed blade with both convex and concave edges
- Stripping head will not distort
- No maintenance required
Specifications
- Length: 4.8 inches
- Weight: 1.7 ounces (48g)
- Cord: 3’ standard (optional 4’ and 6’ lengths are available)
- Temperature Range: 300° F to 1,500° F
- Power Output:
- 2 Series (this one): Up to 3 volts
- ESD Protection:
- 2 Series (this one): No

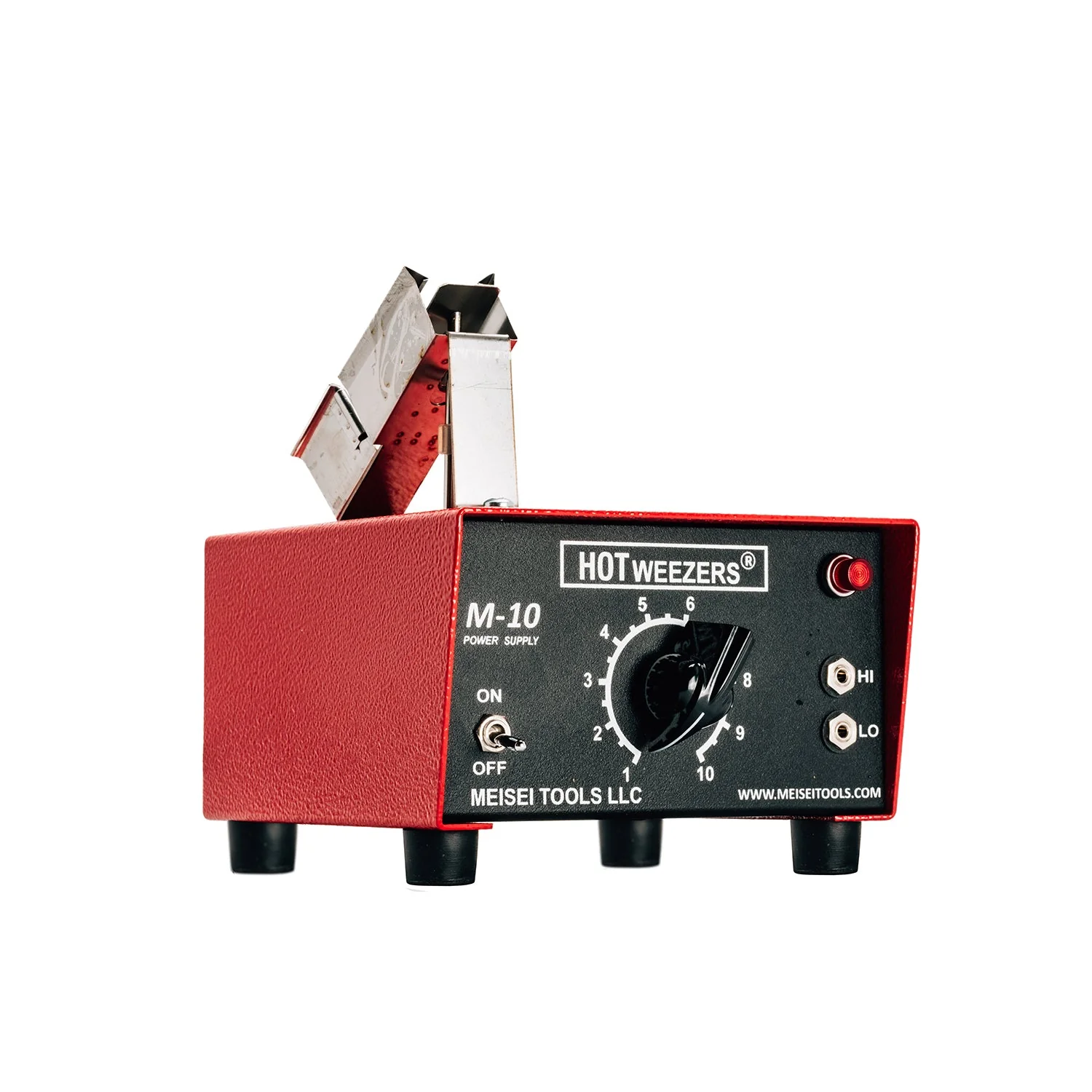

Power Supply (Base Station)
- M-10 Power Supply Unit Included
Product Features
- On/Off switch
- Power indicator light
- Analog temperature control
- Unique hand unit holder that activates idle mode and decreases temperature
- User-replaceable fuse
- Grounded three-prong plug to satisfy OSHA requirement
M-10 Power Supply Specifications
- Dimensions: 3” x 4½” x 4½”
- Weight: 2.25 lbs (1 kg)
- Voltage: 100v, 115v or 225v
- Power Consumption: Up to 33 watts
- ESD Safe: No
