LL-240 Low Loss Coax Cable - w/ 16AWG Stranded Center Conductor
LL-240 Low Loss Coax Cable with 16AWG Stranded Center Conductor
Reliable, Low Loss Coaxial Cable for Everyday Connections
Upgrade your radio, antenna, or communication setup with our LL-240 Low Loss Coax Cable. As an LMR-240 equivalent coaxial cable, it offers very low signal loss from VHF up to multi-gigahertz frequencies. Featuring a 16AWG stranded bare copper center conductor, this 50 Ohm coaxial cable ensures stable performance and flexibility for a wide range of everyday uses.
Key Features & Benefits
- Low Loss Signal: Preserve signal strength with low attenuation from your device to your antenna or receiver.
- High Flexibility: 16AWG, 19-strand center conductor makes setup and installation easy, even in tight spaces.
- Direct Burial and Outdoor-Ready: Designed for direct burial—perfect for indoor or outdoor projects.
- ETL Verified & CL2 / CMR Rated: Meets strict ETL verification for safety and quality, suitable for residential or commercial installations.
- Made in the USA: Quality construction you can trust, with easy-to-read foot markings and printed jacket for quick identification.
Technical Data: LL-240 Low Loss Coax Cable (VUPN6431)

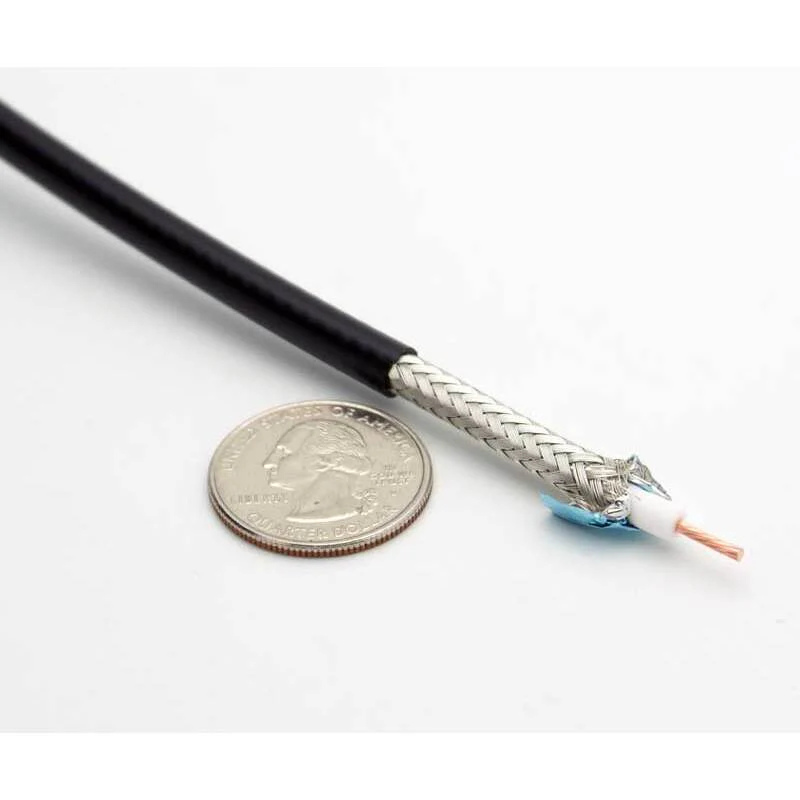

This cable’s durable foamed polyethylene dielectric, tinned copper braid, and aluminum mylar foil shielding provide outstanding signal integrity and interference protection. Comparable in size to RG-8X (Mini-RG-8), it's an effective upgrade for most consumer radios and transmitters.
Physical Specifications
| Center Conductor AWG: | 16 AWG |
| Center Conductor Material: | Bare Copper |
| Center Conductor Stranding: | 19 Strand Bare Copper |
| Dielectric Material: | Foamed Polyethylene |
| Nominal Operation Diameter: | 0.242" |
| Braid AWG: | 34 AWG |
| Braid Material: | Tinned Copper |
| Tape Material: | Aluminum Mylar Foil |
| Final Jacket Material: | Polyethylene |
Electrical Specifications
| Impedance: | 50 Ohms |
| Capacitance: | 24.8pF/Foot |
| Velocity Factor: | .84 |
Attenuation by Frequency
| Frequency (MHz): | Nom dB/100 |
| 50MHz | 2.20dB |
| 100MHz | 3.30dB |
| 200MHz | 4.90dB |
| 400MHz | 5.30dB |
| 1000MHz | 8.90dB |
Clear Markings for Easy Installation

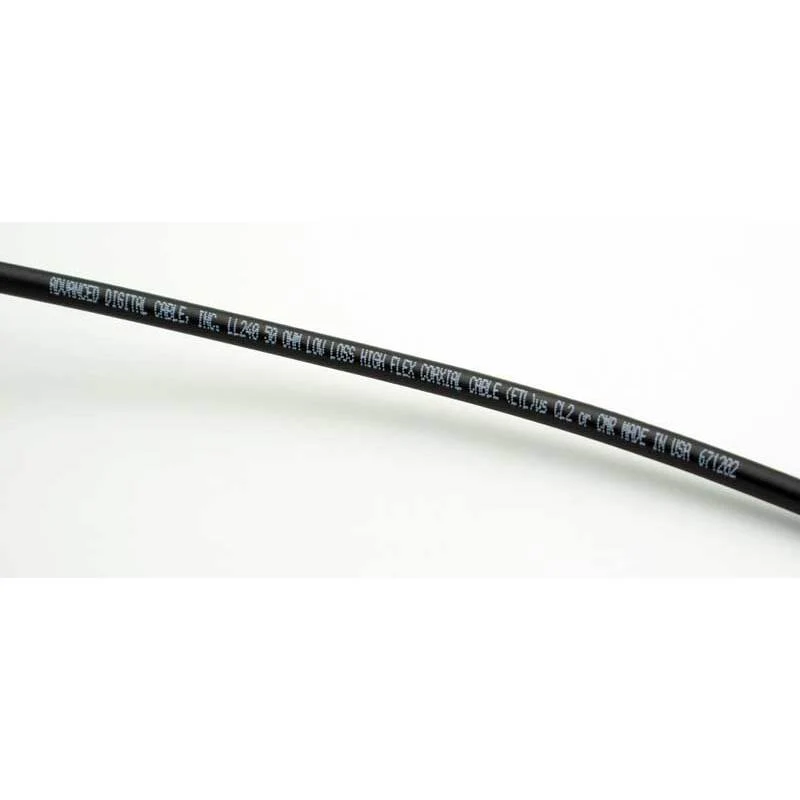

Each LL-240 low loss coaxial cable is printed with "LL240 50 OHM LOW LOSS HIGH FLEX COAXIAL CABLE (ETL)us CL2 or CMR MADE IN USA" and has linear foot markings for quick measuring and professional installation.
Flexible Ordering and Bulk Discounts
Order by the foot—buy exactly what you need. Enjoy automatic price breaks at 50, 100, and 500 feet for bigger projects.
Connector Compatibility
Pair your LL-240 coax with compatible connectors for a perfect fit. Choose from trusted options for easy installation:
| UHF Male: | TES 394841 |
| BNC Male: | TES 384862 |
| BNC Female: | TES 56093 |
| N Male: | TES 373491 |
| N Female: | TES 354507 |
| SMA Male: | TES 315399 |
| SMA Female: | TES 304759 |
| RP SMA Male: | TES 364735 |
| RP SMA Female: | TES 3394980 |
| RP TNC Male: | TES 394461 |
| RP TNC Female: | TES 354039 |
Experience dependable performance, flexible installation options, and low loss with LL-240 coax cable—your everyday choice for quality signal transmission.
Original: $1.35
-65%$1.35
$0.47More Images
