SMA Male 3 Piece Crimp Connector for RG-316 Coax Cable

Easy-to-Use SMA Male Crimp Connector for RG-316

Upgrade your coaxial projects with this SMA male crimp connector, designed specifically for use with RG-316 coaxial cable. This connector is perfect for everyday consumers, hobbyists, and DIY electronics projects. Its simple installation process and sturdy construction make it a reliable choice for connecting RF devices.

3 Piece Design for Reliable Connections

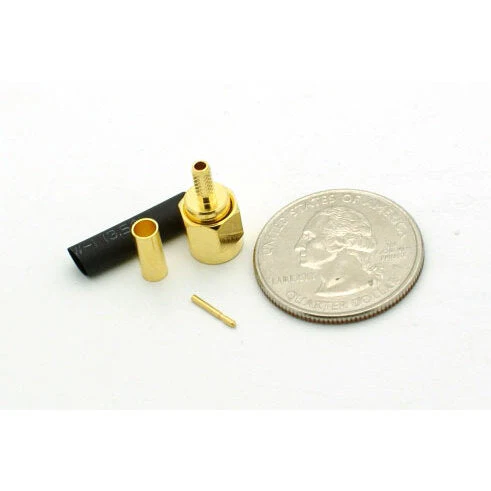

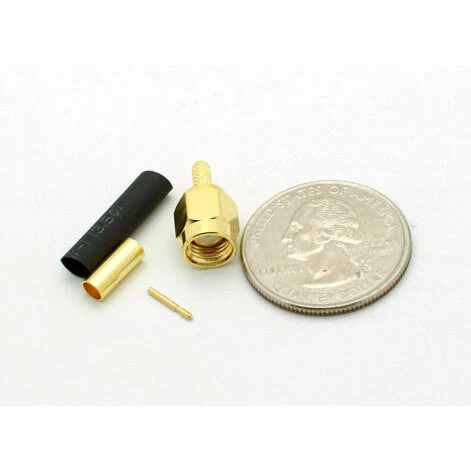

This SMA male crimp connector features a 3 piece design:

• Center Pin: Solder the gold-plated pin to the center conductor of your RG-316 coax cable for optimal signal transfer.
• Main Body: The connector's durable nickel-plated housing ensures excellent shielding and long-lasting performance.
• Ferrule: Secure the connector to your cable with the included ferrule, providing a firm and professional finish.

The combination of soldered and crimped connections ensures strong electrical performance and stability.

Technical Specifications

• Type: SMA Male 3 Piece Crimp Connector
• Compatible Cable: RG-316 coaxial cable
• Gold Plated Pin for improved conductivity
• Nickel-Plated Body for corrosion resistance
• Manufacturer: Pan Pacific Enterprises
• Manufacturer Part Number: SMA-2517
• Overall Dimensions: 0.94" (length) x 0.32" (diameter)
• Quantity: 1 connector per package

How to Use

1. Prepare your RG-316 coaxial cable by stripping back the jacket, shield, and dielectric.
2. Solder the gold-plated center pin onto the cable’s center conductor.
3. Slide the ferrule onto the cable.
4. Insert the prepared cable into the SMA male connector body.
5. Crimp the ferrule securely over the cable shield for a stable connection.

This SMA male crimp connector for RG-316 is ideal for high-frequency signal connections, RF projects, antennas, test equipment connections, and wireless devices.
